| Weight & Dimensions | |

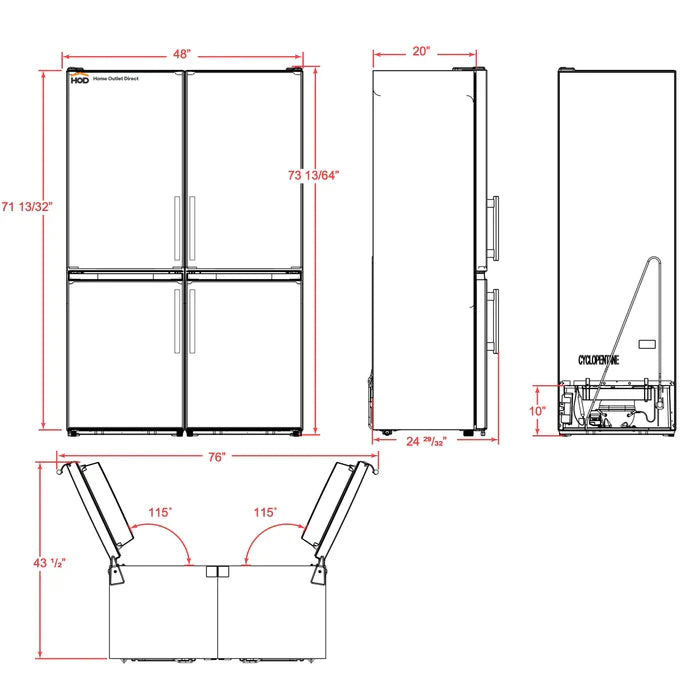

| Overall Dimensions | 46.8"W X 24.91"D X 73.2"H ± 0.31 |
Width Door(s) Fully Open (inches)
| 70 |
Cabinet Depth (no Door)
| 20 |
Depth without Handle (IN)
| 22.6 |
Depth Door(s) Open 90° (inches)
| 44.9 |
Height Top of the Door (inches)
| 73.2"H ± 0.31 |
Height Top of Door Hinge (inches)
| 73.2"H ± 0.31 |
Height Top of the Cabinet/Case (inches)
| 72.4 |
Sides Clearance - On Each Sides (IN)
| 4 |
Minimum Back Clearance (IN)
| 2.76 |
Minimum Top Clearance (IN)
| 4 |
| Cutout Dimensions (IN) | 35 |
| Overall Weight | 268 Lbs |
| Certifications |
|
Safety Listing
| cCSAus |
File/Control Number
| 226958 |
Energy Star Certified
| Yes |
ENERGY STAR Unique ID
| 2684062 |
Energy Star Most Efficient
| No |
ISTA 6A Certified
| Yes |
Title 20 - California Regulation
| Yes |
CEE Tier Qualified
| Not Rated |
TAA Compliant
| No |
Energy Policy Act 1992 Compliant
| Yes |
CPSC 16 CFR 1750 Compliant
| Yes |
| Warranty |
|
Commercial Warranty
| No |
Warranty Type
| LImited |
Warranty Length
| 2 |
Warranty on Parts
| 2 |
Warranty on Labor
| 2 |
| Electrical | |
Circuit Breaker Amperage (A)
| 20 |
Running Amperage (A)
| 2.6 |
Volts (V)
| 115 |
Frequency (Hz)
| 60 |
Power Consumption Defrost Wattage (W)
| 300 |
Energy Consumption (kWh/yr)
| 782 kWh / year |
| USD 110.00 | USD 110.00 |
Power Cord Length with Plug (feet)
| 7 |
Power Cord Location
| Lower Back |
Number of Power Cord
| 2 |
Receptacle Type
| NEMA 5-15P |
| Details | |

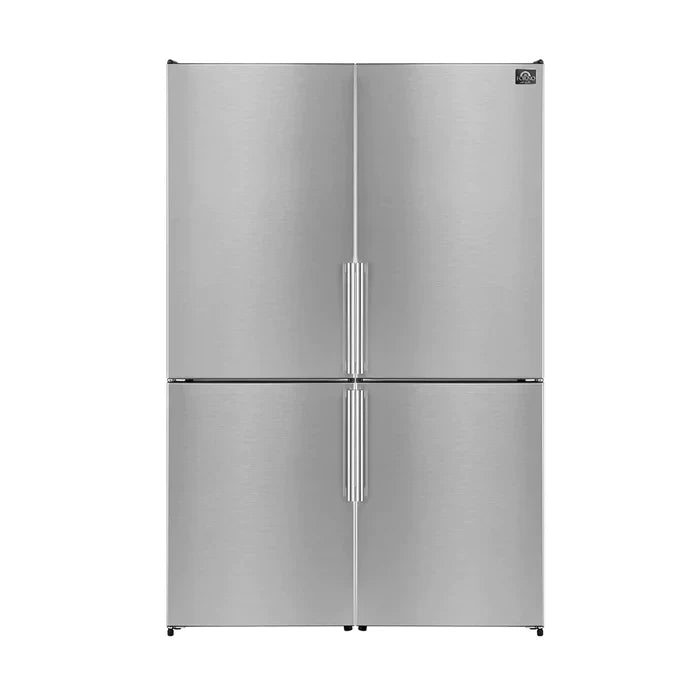

Product Type
| Side-by-Side |
Color/Finish
| Stainless Steel |
Handle Finish
| Stainless Steel |
Installation Type
| Freestanding |
Panel Ready
| No |
Overall Capacity Cu. Ft.
| 21.6 |
Flat back design
| Yes |
Reversible Door
| No |
Hidden Hinges
| No |
Ice Maker
| No |
Filtered Ice
| No |
Dispenser Type
| No Water/Ice Dispenser |
Interior Light
| Yes |
Interior Light Type
| LED |
Defrost Type
| Automatic |
Temperature Memory Function
| Yes |
Electronic Temperature Control
| Yes |
Control Location
| Internal |
Spill-Proof Shelves
| No |
Pantry Drawer
| No |
Auto Door Closer
| No |
Counter Depth
| Yes |
Leveling Legs
| Yes |
Primary Material
| Steel |
Door Style
| Contoured |
Door Texture
| Smooth |
Door Liner Material
| White HIPS |
Door Liner Color
| White |
Cabinet Material
| Embossed Galvanized Steel |
Cabinet Color
| Gray |
Door Ajarm Alarm
| Yes |
Garage Ready
| No |
Finger Print Resistant
| No |
Smudge Resistant
| No |
Air Filtration
| No |
Safety Lock
| No |
Display Screen
| No |
Sabbath Mode
| No |
Vacation Mode
| No |
Energy Saver/ECO Mode
| No |
Fast Freeze/Cool Mode
| Yes |
See-Thru Door
| No |
Quiet Operation
| Yes |
Noise Level (dBA)
| 39 |
Power Cord
| Yes |
Toe Grille Color
| No Toe Grille |
Cooling Type
| multi Air Flow |
Dual Evaporator Cooling System
| Yes |
Cooling System
| Compressor Based |
Compressor Type
| Constant Frequency Compressor |
Contain Gases
| R600A |
Quantity of gas in Compressor (oz)
| 2.26 |
Supplier Intended and Approved Use
| Residential |

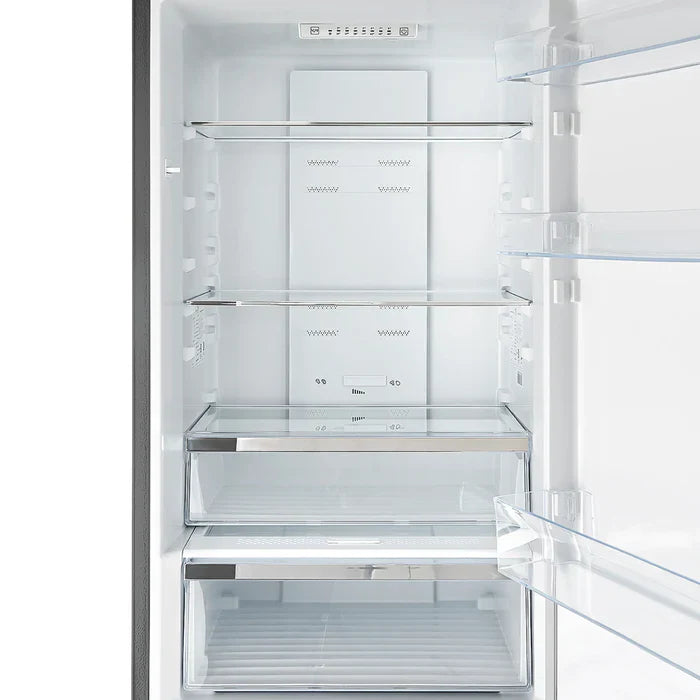

Fresh Food Capacity Cu. Ft.
| 14.8 cu.ft. |

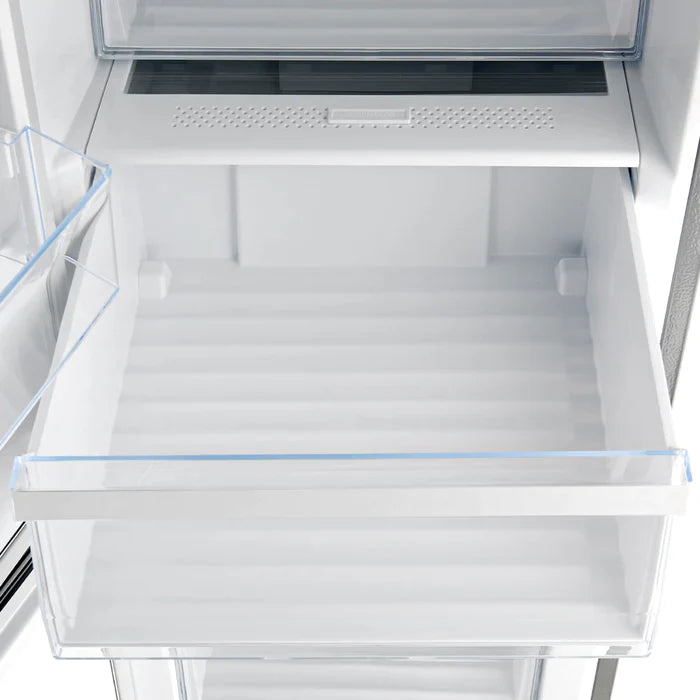

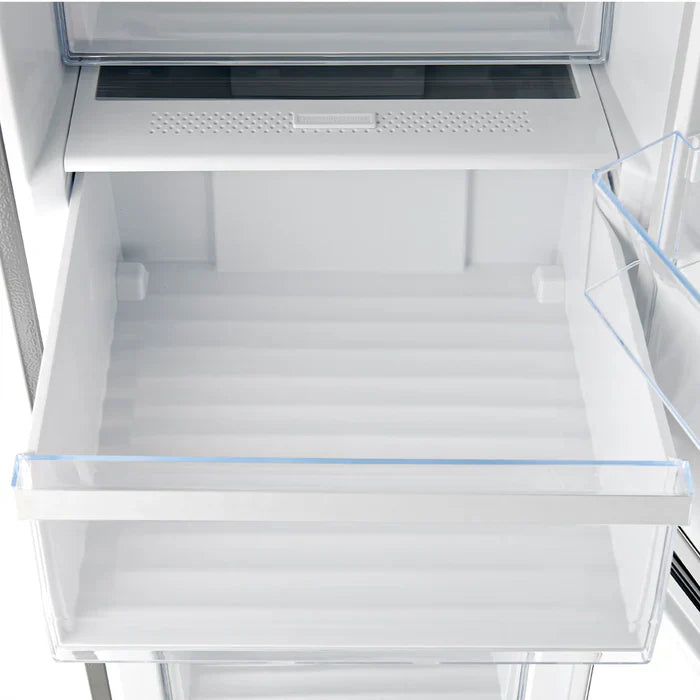

Number of Fresh Food drawers
| 4 |
Temperature Controlled Drawer(s)
| No |
Humidity Controlled Drawer(s)
| Yes |
| Fresh Food Drawer(s) Size | Upper Drawer: 19.3"W x 11.9"D x 5.1"H
Lower Drawer: 18.3"W x 15.8"D x 6.8"H
|

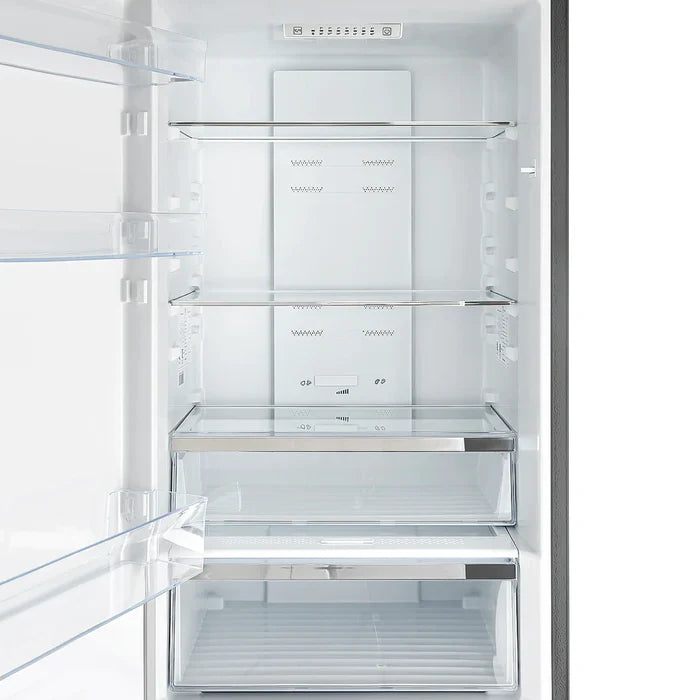

Number of Fresh Food Shelves
| 6 |
Fresh Food Shelves Material
| Glass with Silver Trim |
Adjustable Fresh Food Shelves
| Yes |
Number of Adjustable Shelves
| 4 |
Fresh Food Door Type
| Swing Door |

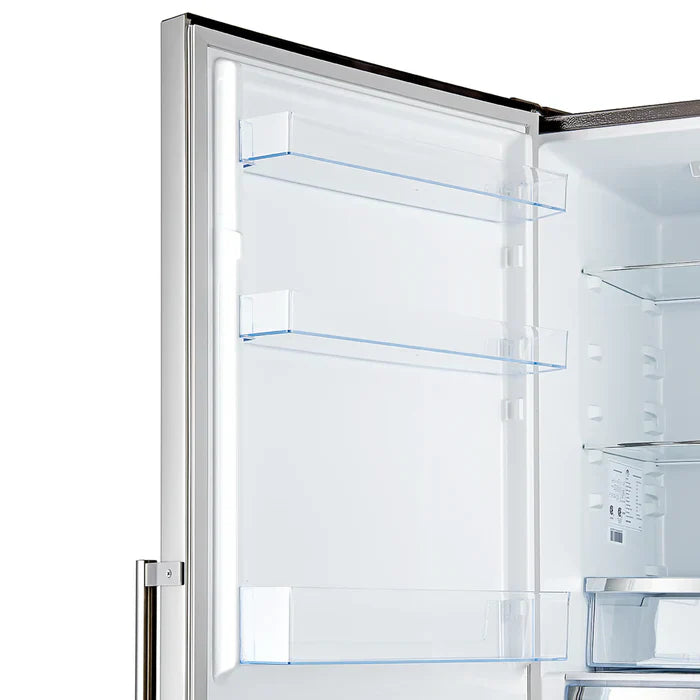

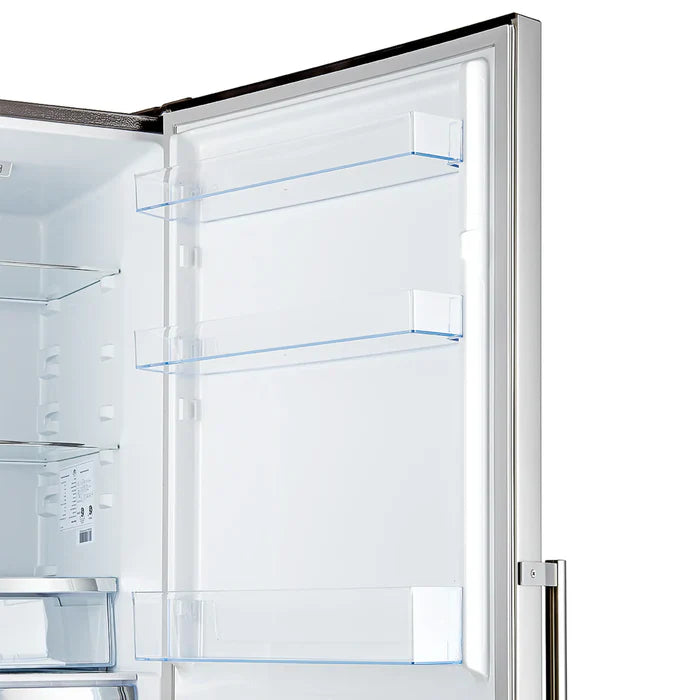

Door Storage
| Yes |
Fridge Door Bin(s)/Shelves
| 6 |
Adjustable Door Storage
| No |
Number of Gallon (4 Liters) Door Bins
| 0 |
Number of Standard Door Bins
| 6 |
Door Bins Color
| Transparent |
Door Bins Material
| Plastic |
Temperature Range Refrigerator (°F)
| 36°F to 46°F |
Temperature Range Refrigerator (°C)
| 2°C to 8°C |
Freezer Capacity
| 6.8 |
Freezer Door Style
| Swing Door |
Freezer Light
| Yes |

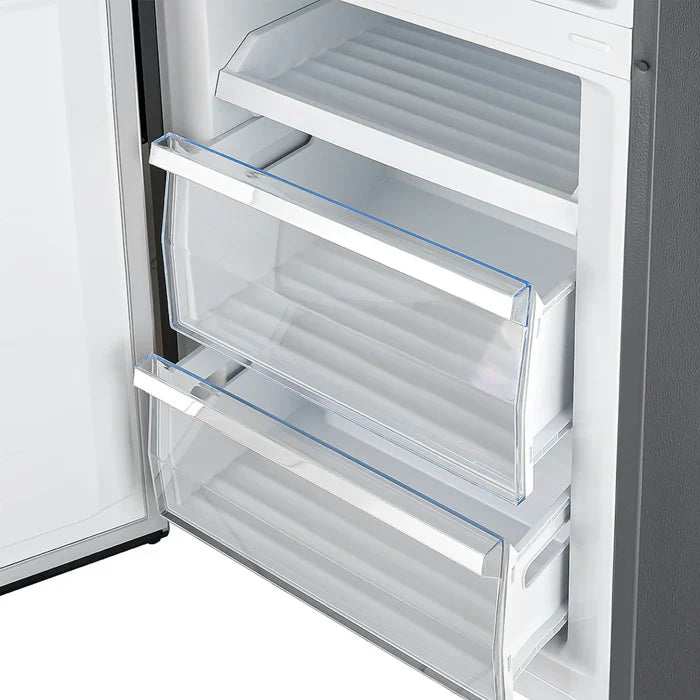

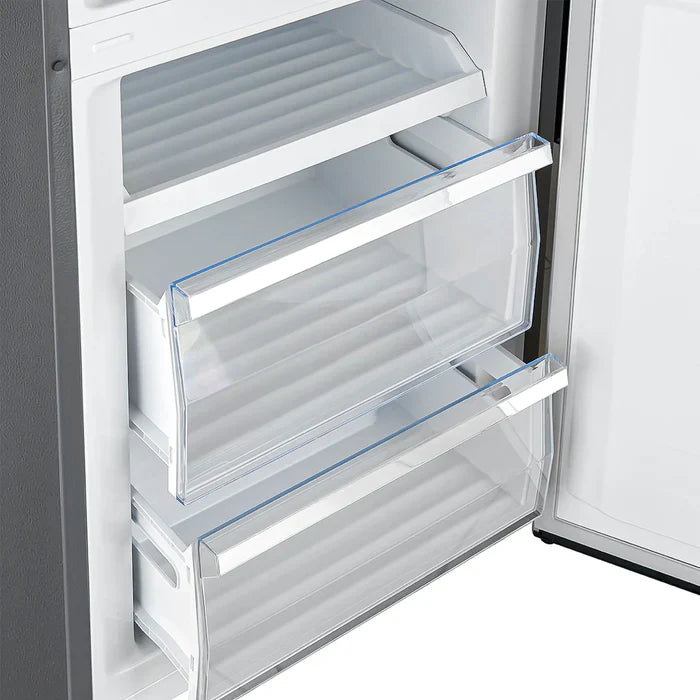

Number of Freezer Drawers
| 6 |
Number of Freezer Basket
| 0 |
Freezer Section Layout
| Freezer Drawers,
Full Width |
Number of Freezer Shelves
| 0 |
Temperature Range Freezer (°F)
| 6.8°F - 11.2°F |
Temperature Range Freezer (°C)
| -14°C - -24°C |
