Weight and Dimensions |
|
Overall WxDxH (IN) Biggest Dims Possible (with Handle, Backsplash, etc)
| 29.92"W x 27.56"D x 37.13"H |
Cutout Dimensions W x D x H (inches)
| 30''W x 25''D x 36''H |
Depth with Oven Door Open 90º (IN)
| 46.25" |
Depth without Oven Door Handle (IN)
| 26.25" |
Overall Weight (LBS)
| 166.45 lbs |
Electrical |
|
Dedicated Circuit Breaker Amperage
| 50 Amp |
Total Amps Use
| 49.58 Amp |
Volts
| 240 V |
Stand By Power (AMP)
| 1.94 AMP |
Rated Power (W)
| 11,900 Watts |
Cooktop Max Power (W)
| 7,200 Watts |
Oven Max Power
| 4,700 Watts |
Power Cord Included
| Yes |
Power Cord Length Without Plug (FT)
| 5.55 ft |
Power Cord Length With Plug (FT)
| 5.87 ft |
Plug Type
| NEMA 14-50P |
Details |
|
Product Type
| Slide-In |
Color/Finish
| Stainless Steel |
Handle Finish
| Stainless Steel |
Fuel Type
| Electric |
Burner Fuel
| Electric |
Oven Fuel
| Electric |
Electric Heat Configuration (Cooktop)
| Induction |
Total cooktop Wattage output
| 8,100 Watts |
Number of Burners
| 4 |
Double Ring Burner
| No |
Warmer Burner
| No |
Bridge Element/Flex Zone
| No |
Cooktop Surface Color
| Black |
Cooktop Surface Materiel
| Ceramic Glass |
Cooktop Surface Structure
| Smoothtop |
Number of Ovens
| 1 |
Oven Interior Finish
| Speckled Blue |
Telescopic Racks
| No |
Oven Racks Type
| Standard |
Number of Racks
| 2 |
Racks Material
| Chrome-Plated |
Number of Rack Positions
| 6 |
Cooking Surface Control Type
| Knobs |
Broiler
| Yes |
Broiler Element Type
| Single Element |
Overall Broiler Element Wattage
| 3,600 Watts |
Broiler Location
| Oven |
Bake Element
| Yes |
Overall Bake Element Wattage
| 2,200 Watts |
Hidden Bake Element
| Hidden |
Convection Oven
| Yes |
Convection Type
| True Convection |
Automatic Convection Conversion
| Yes |
Cook time Option
| Yes |
Delay Start
| Yes |
Temperature Gauge
| No |
Timer
| Yes |
Clock
| Yes |
Sabbath Mode
| Yes |
Cleaning type
| Self Clean; Steam Clean |
Interior Light
| Yes |
Number Of Lights
| 2 |
Control Type
| 4 |
Number of Knobs
| 4 |
Knobs Color/Finish
| Stainless Steel |
Control Location
| Front |
Control Lock
| Yes |
Oven Preheating Indicator
| Yes |
Cooktop Hot Surface Indicator
| Yes |
Door Lock Option
| Yes |
Storage Drawer
| No |
Plug-In
| Yes |
Primary Material
| Steel |
Door Panel Material
| Steel |
Control Panel Material
| Steel |
Kick Plate Material
| Steel |
Metal | Metal |
Supplier Intended and Approved Use
| Residential Use |
Air Fryer Kit (Basket + Support & Drip Pan)
| Yes |

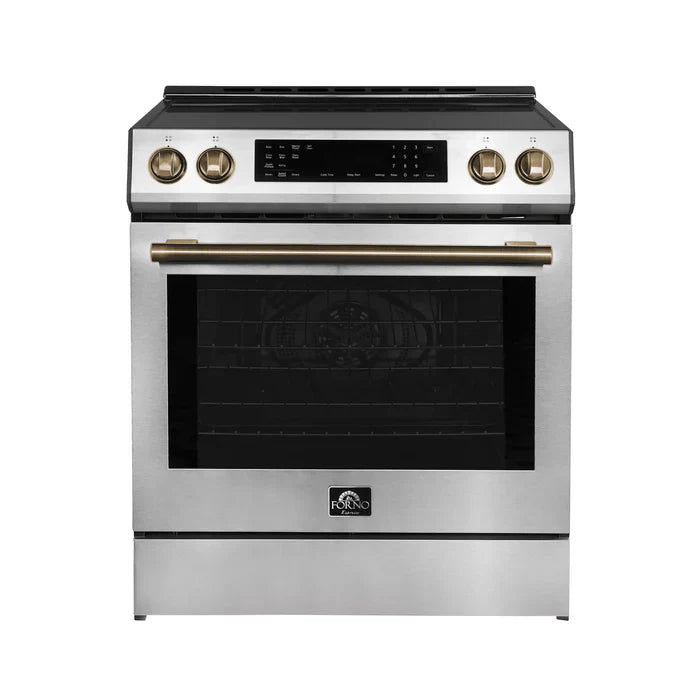

Antique Brass Kit (Handle+Knobs+Knob Rings)
| Yes |
Power Cord
| Yes |
Griddle
| No |
Rotisserie Kit
| No |
Front Right Burner Watts
| 1,500 Watts |
Front Right Burner Size (IN)
| 7 |
Front Left Burner Watts
| 2,100 Watts |
Front Left Burner Size (IN)
| 9 |
Rear Right Burner Watts
| 3,000 Watts |
Rear Right Burner Size (IN)
| 9 |
Rear Left Burner Watts
| 1,500 Watts |
Rear Left Burner Size (IN)
| 7 |
Main Oven Capacity (cubic feet)
| 5 cu.ft. |
Main Oven Function
| Bake; Broil; Warm; Proof; Convection Bake; Convection Broil; Convection Roast; Quick Preheat; Air Fry; Convection Conversion |
Main Oven Interior Width (IN)
| 24.6"W |
Main Oven Interior Depth (IN)
| 19"D |
Main Oven Interior Height (IN)
| 18.5"H |
Usable Main Oven Interior Dimensions W x D x H (inches)
| 24"W x 15.75"D x 16"H |
Main Oven Rack Size | 24"W x 15.75"D |
Air Fry Basket Dimensions W x D x H (inches)
| 16.14"W x 13.98"D x 1.34"H |
Main Oven Total Broil Wattage
| 3,600 Watts |
Main Oven Bake Wattage
| 2,200 Watts |
Main Convection Fan
| Yes |
Main Oven Convection Fan Wattage
| 50 Watts |
Main Oven True Convection Wattage
| 2,500 Watts |
Certification |
|
Safety Listing
| cETLus |
File/Certification Number
| 3100243 |
ISTA 6A
| Yes |
ADA Compliant
| No |
Star-K Certified
| Not Certified |
Warranty |
|
Commercial Warranty
| No |
Warranty Type
| Limited |
Warranty Length
| 2 Years |
Warranty on Parts
| 2 Years |
Warranty on Labor
| 2 Years |
