Accucold 20" Wide Built-In Vaccine All-Freezer ADA Compliant - ADA305AFSSTBC
Accucold offers a quality selection of 20" wide built-in under-counter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions.
The ADA305AFSSTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user reversible stainless steel door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access.
A digital thermostat, located in the kick-plate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.

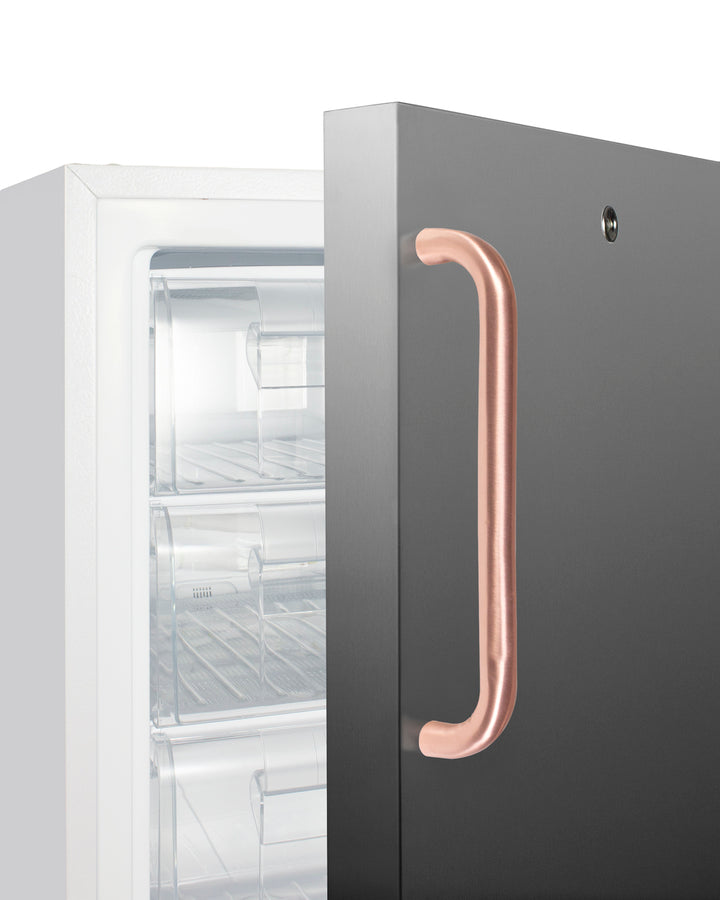

The ADA305AFSSTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter time-frame than most other metal surfaces allowing for a safer, cleaner user experience.

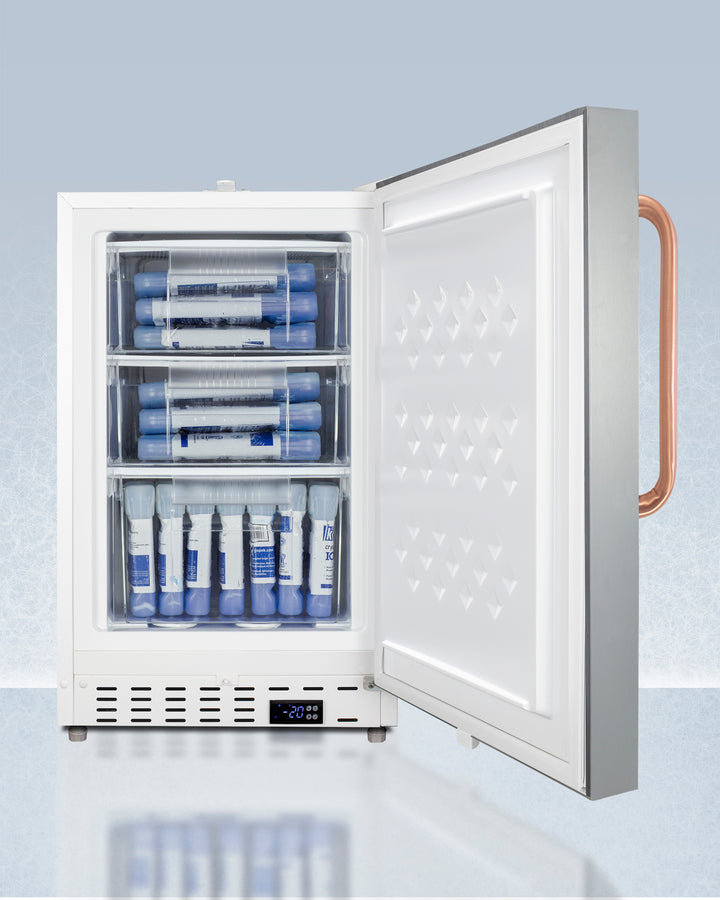

Inside, the ADA305AFSSTBC can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door.
The user-set high and low temperature alarms provide added security should the temperature go beyond the set-point, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 20" wide, the ADA305AFSSTBC is ETL-S listed to NSF-7 commercial standards. With its slim dimensions, commercial construction, and user-friendly features, it makes an ideal choice for various facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFSSTBC all-refrigerator.
Features
- ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
- -25°C capable: Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Commercially approved: Meets ETL-S to NSF-7 standards for use in commercial settings
- Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Copper handle: Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
- Factory-installed lock: Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
- Access port: Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
- Adjustable digital thermostat: Electronic controls located in the front kick-plate for easy & intuitive temperature management, with a readout in Fahrenheit or Celsius
- Basket shelves: Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- 3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Temperature alarms: User-set high/low temperature alarms provide added security if temperature goes beyond set-point
- Open door alarm: Audible alarm will sound if the door is left ajar for over a minute
- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
- Manual defrost: More temperature stability with an energy efficient manual defrost system
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- No internal fans: Temperature remains more stable with a static cooling system
- Reversible stainless steel door: User-reversible stainless steel door for added flexibility to best accommodate your setting
- Sealed back: Space-saving design that offers easier clean-ability
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Matching all-refrigerator: This unit can be paired with the ADA404REFSSTBC all-refrigerator for a complete set
- Fully finished white cabinet: Allows the unit to be freestanding
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 31.75" (81 cm)
- Height to Hinge Cap: 32.0" (81 cm)
- Width: 19.75" (50 cm)
- Width with Door Open: 20.25" (51 cm)
- Depth: 22.5" (57 cm)
- Depth with Handle: 25.0" (64 cm)
- Depth with door at 90°: 40.25" (102 cm)
- Capacity: 2.47 cu.ft. (70 L)
- Defrost Type: Manual
- Door: Stainless Steel
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.1
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 75.0 lbs. (34 kg)
- Shipping Weight: 80.0 lbs. (36 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101077734
Freezer
- Door Swing: RHD
- Reversible: Yes
- Interior Height: 23.75" (60 cm)
- Interior Width: 14.5" (37 cm)
- Interior Depth: 17.0" (43 cm)
- Shelf Type: Drawers
- Shelf Qty: 3
- Thermostat Type: Digital
- Fan Type: Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.34 oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Level Legs: 2
- Interior Drawers: Yes
- Drawers Qty: 3
- Compressor Step Height: 5.75" (15 cm)
- Compressor Step Width: 14.5" (37 cm)
- Compressor Step Depth: 6.0" (15 cm)
- Temperature Range: -25° to -15°C
Available Upgrades
Exterior
- LHD: Left hand door swing
- Extra key
- TT: Installed thermometer
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
- CAS6 6" casters
- CAS3 3" casters
Handle
- CP Full-Length Copper Pipe Handle
Lock
