| Weight & Dimensions | |
| |
| Cutout Dimensions | 60.25”W x 28”D |
| Oven Door Open 90º | +28” |
| Right Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Left Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Overall Weight | 695.3 lbs |
| Electrical | |
| Amperage | 15A |
| Volts | 120V |
| Power Cord Length | 5' |
| Receptacle Type | 3-prong grounding-type |
| Certifications | |
| Certifications | Yes |
| Title 20 – California Regulation | Yes |
| Cooktop | |
| Overall Burners BTU | 200,000 |
| Front Right Burner BTU | 200,000 |
| Front Right Center Burner BTU | 20,000 |
| Front Center Burner BTU | 20,000 |
| Front Left Center Burner BTU | 20,000 |
| Front Left Burner BTU | 20,000 |
| Rear Right Burner BTU | 20,000 |
| Rear Right Center Burner BTU | 20,000 |
| Rear Center Burner BTU | 20,000 |
| Rear Left Center Burner BTU | 20,000 |
| Rear Left Burner BTU | 20,000 |
| Oven | |
| Overall Oven Capacity | 8.64 |
| Overall Broil Top BTU | 20,000 |
| Overall Bottom BTU | 44,000 |
| Right Oven Capacity | 4.32 |
| Right Broil Top BTU | 10,000 |
| Right Bottom BTU | 22,000 |
| Left Oven Capacity | 4.32 |
| Left Broil Top BTU | 10,000 |
| Left Bottom BTU | 22,000 |
| Convection Fan | Yes |
| Details | |

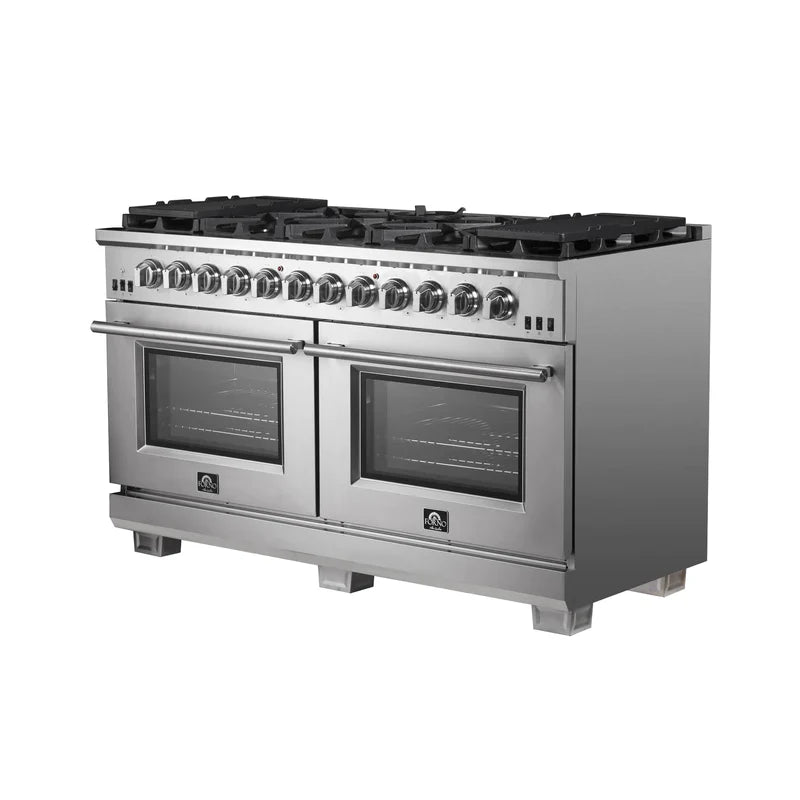

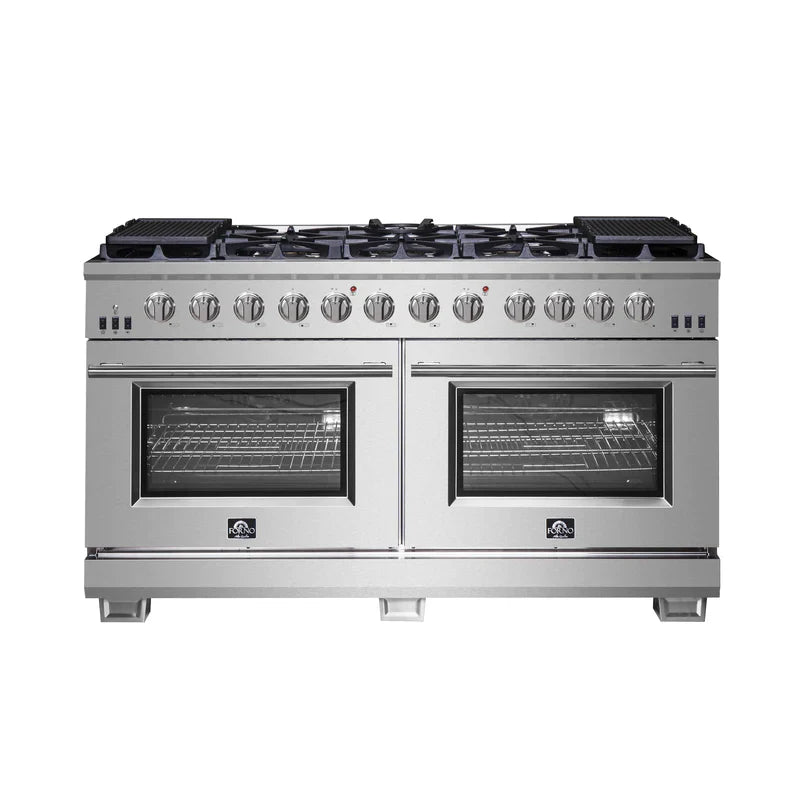

| Product Type | Freestanding Range |
| Color/Finish | Stainless Steel |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| Gas Heat Configuration | Sealed Burners |
| Number of Burners | 10 |
| Cooktop Surface | Deep Recessed Enamel |

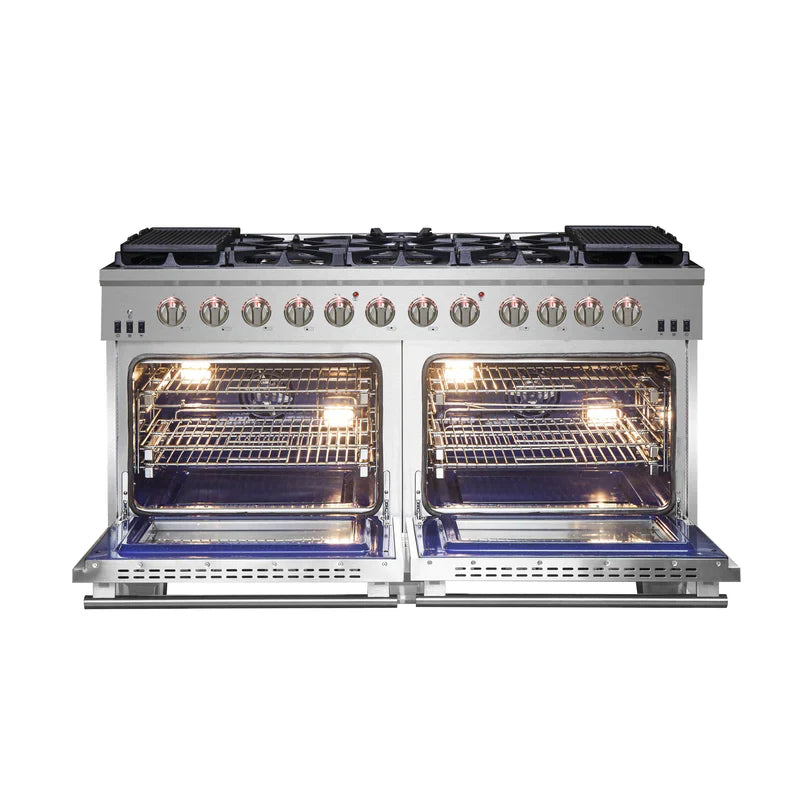

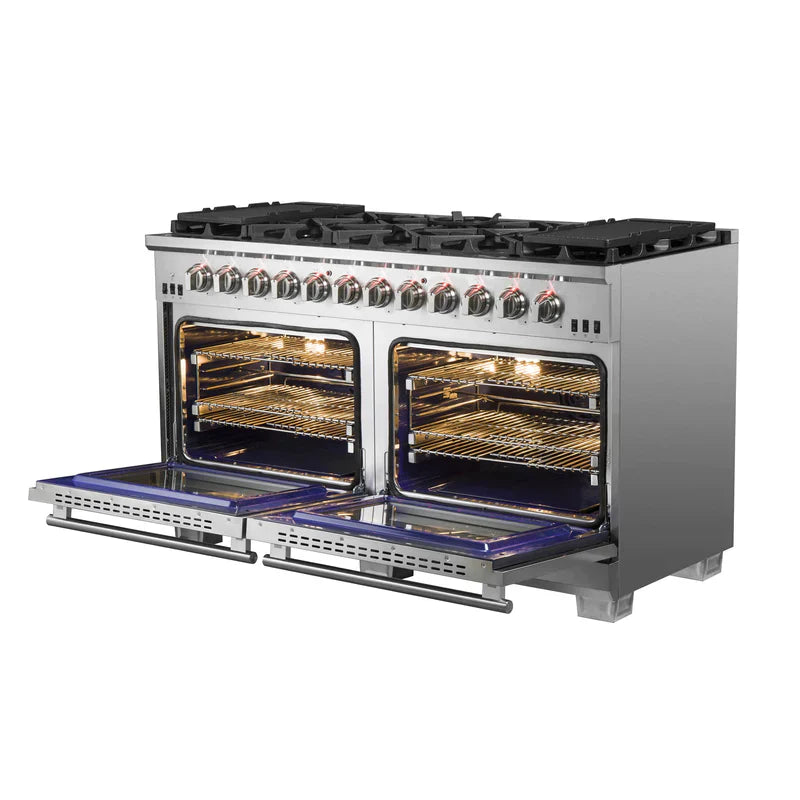

| Number of Ovens | 2 |
| Number of Racks | 6 |
| Broiler | Gas |
| Bake Element | Gas |
| Cleaning Type | Normal |
| Interior Light | 4 |
| Control Type | Knob |
| Control Location | Front |
| Sealed Burners | Yes |
| LP Gas Convertible | Yes |
| Convection Oven | Yes |

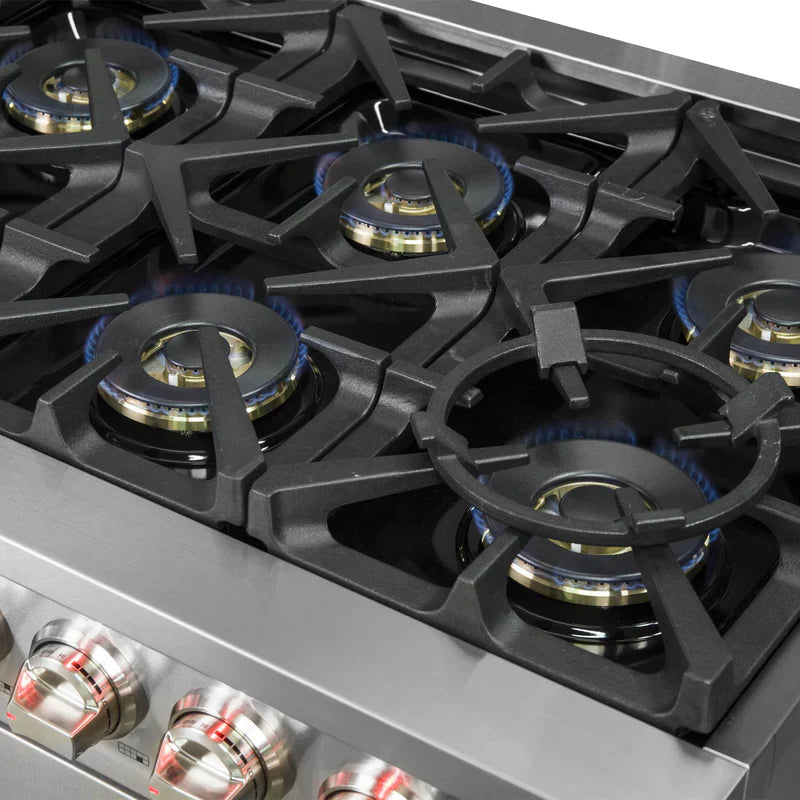

| Continuous Cast Iron Grate | Yes |
| Pro-Style Handle | Yes |
| Halogen Oven Lights | Yes |
| Adjustable Legs | Yes |
| Stainless Steel Square Leg Covers | Yes |
| Smudge Resistant | Yes |

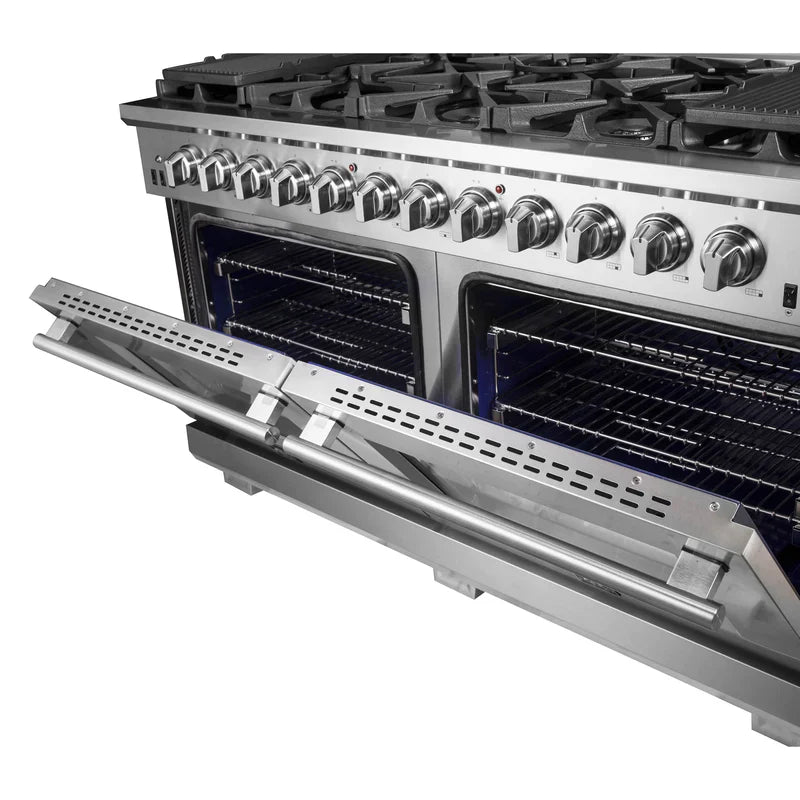

| Soft Door Close | Yes |
| Illuminated Zinc Knobs | Yes |

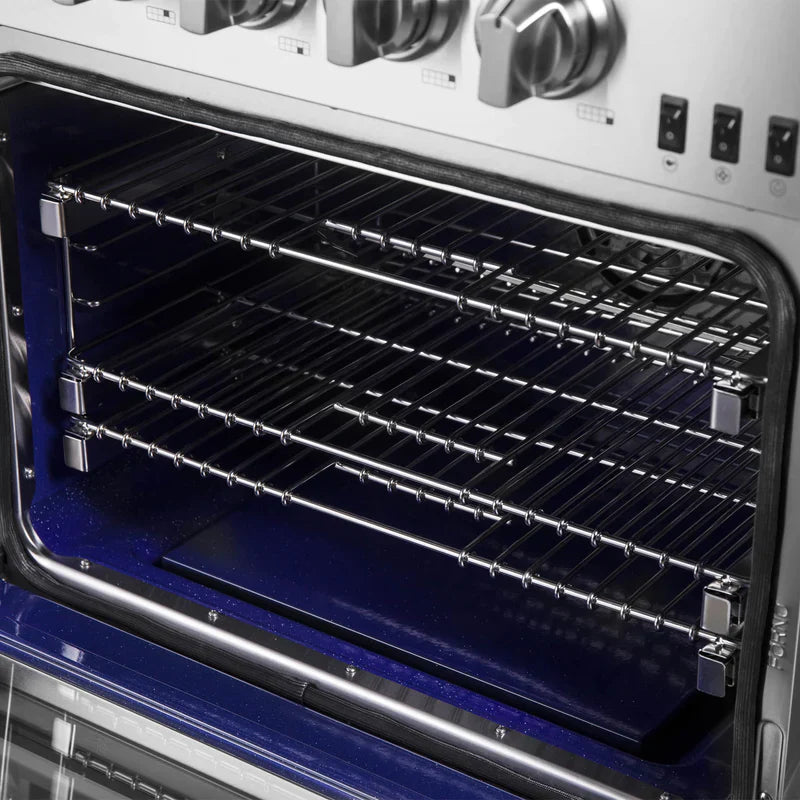

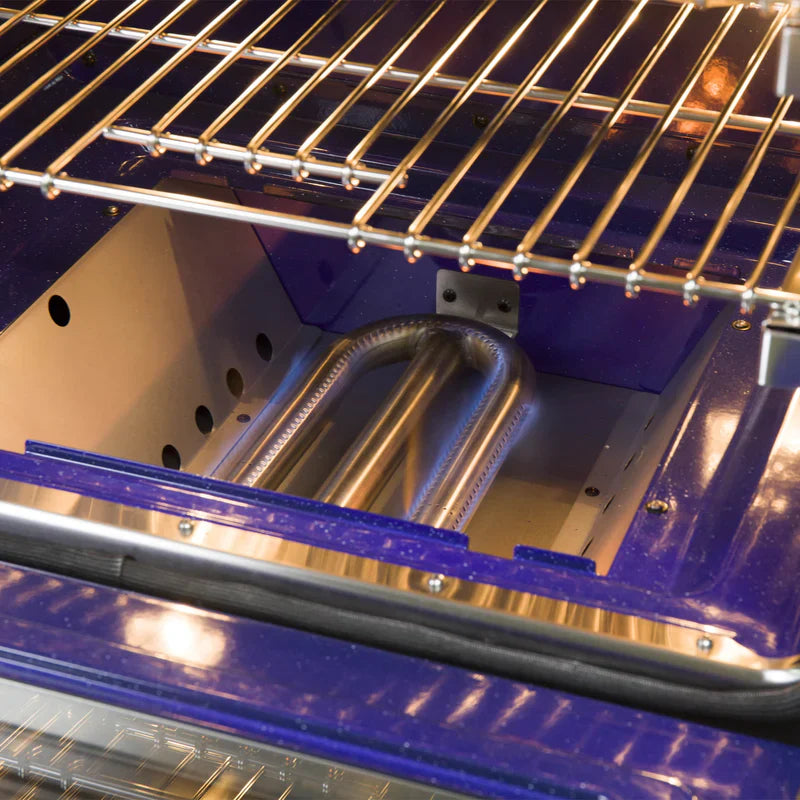

| Blue Enamel Oven Interior | Yes |
| Food Grade 304 Stainless Steel | Yes |
| Back Splash Guard Included | Yes |

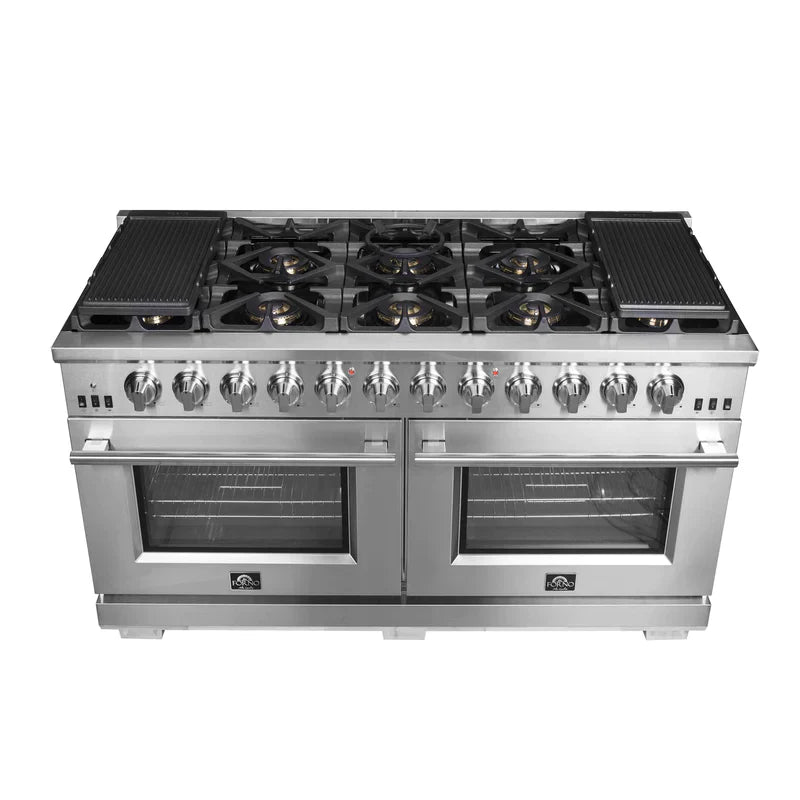

| Griddle Include | Yes |
| LP Conversion Kit Included | Yes |
| Thermostat | Yes |
| Regulator | Yes |
| Safety valves | Yes |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | 430 Stainless Steel |
| Supplier Intended and Approved Use | Residential Use Only |
| Country of Origin | China |
