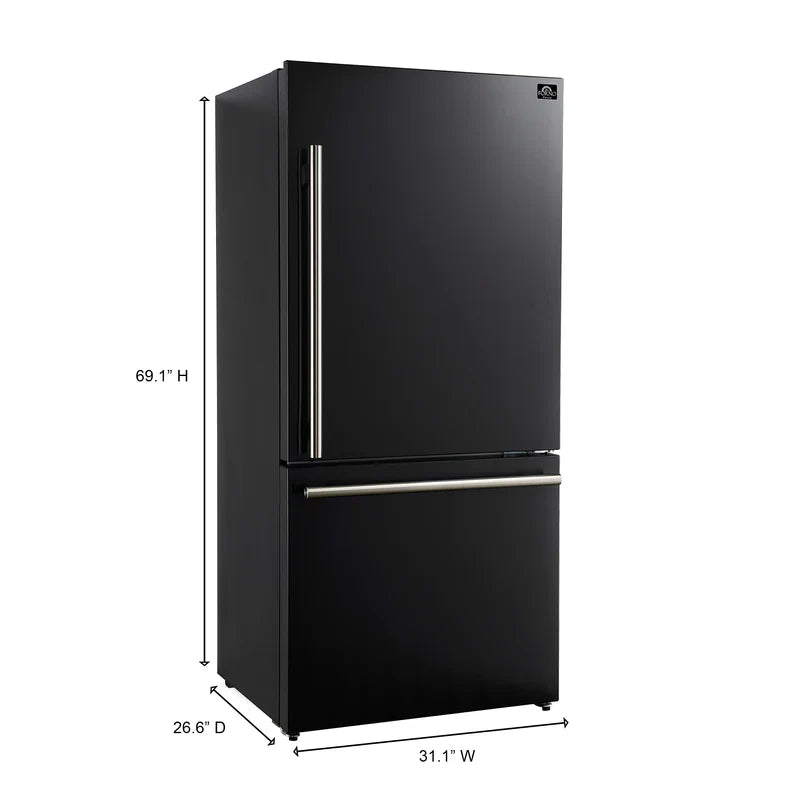

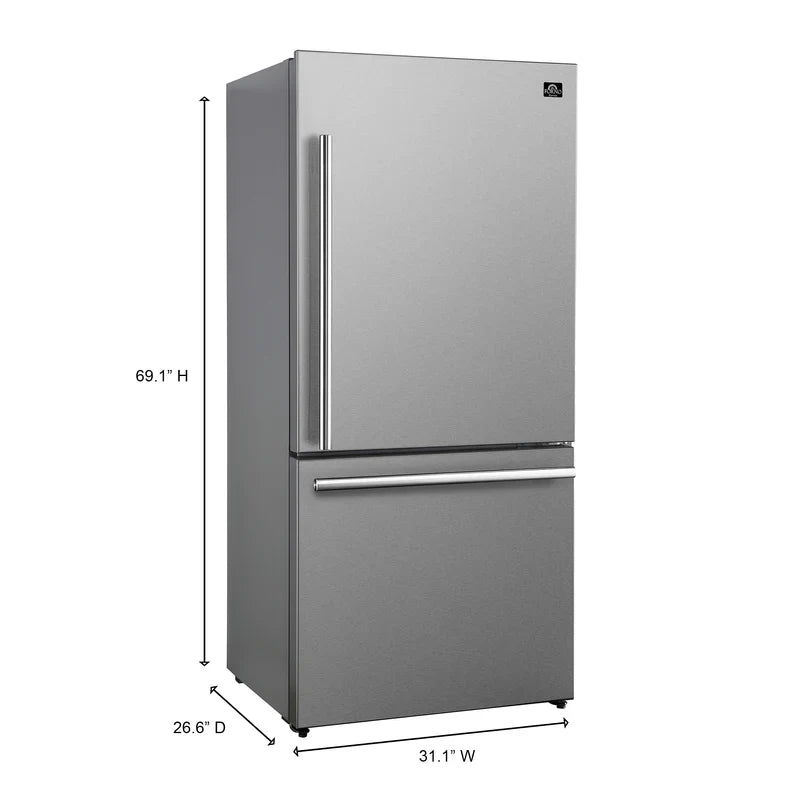

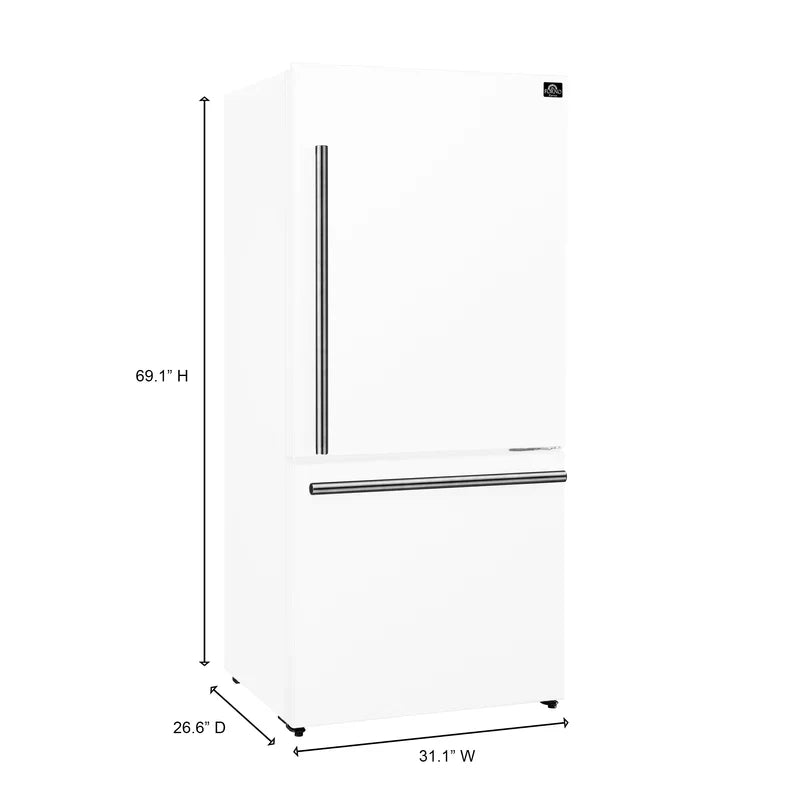

Overall Dimensions (IN) W X D X H
| 31.1 X 29.2 X 69.1
|
Width Door(s) Open 130° (inches)
| 52
|
Cabinet Depth (no Door)
| 23.6
|
Depth without Handle (IN)
| 26.6
|
Depth Door(s) Open 90° (inches)
| 56.3
|
Depth Drawer(s) Open (inches)
| 43.4
|
Height Top of the Cabinet (inches)
| 68.5
|
Sides Clearance (IN)
| 1" on the left 1.6" on the right for door opening if next to fixed wall
|
Minimum Back Clearance (IN)
| 2 |
Minimum Top Clearance (IN)
| 1 |
Cutout Dimensions (IN) W X D X H
| 33.7 x 31.2 x 70.1
|
Energy Star
| Yes |
ISTA 6A Certified
| Yes |
UL Listed | Yes |
Contain Gases | R600A
|
Commercial Warranty
| No |
Warranty Type
| Limited |
Warranty Length
| 2 |
Warranty on Parts
| 2 |
Warranty on Labor
| 2 |
Overall Weight (LBS)
| 196
|
Product Type
| Bottom Freezer
|

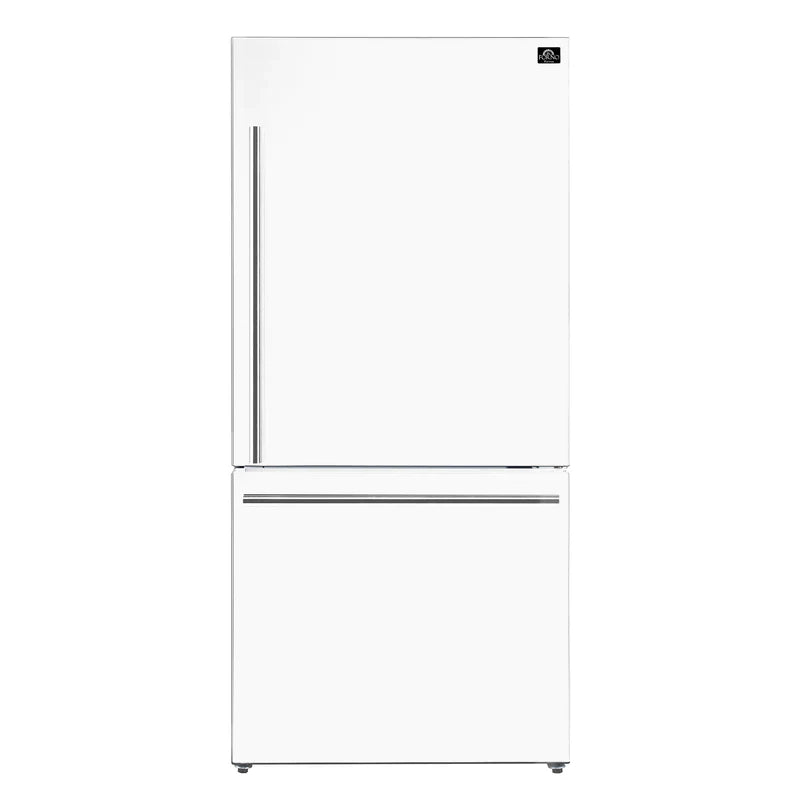

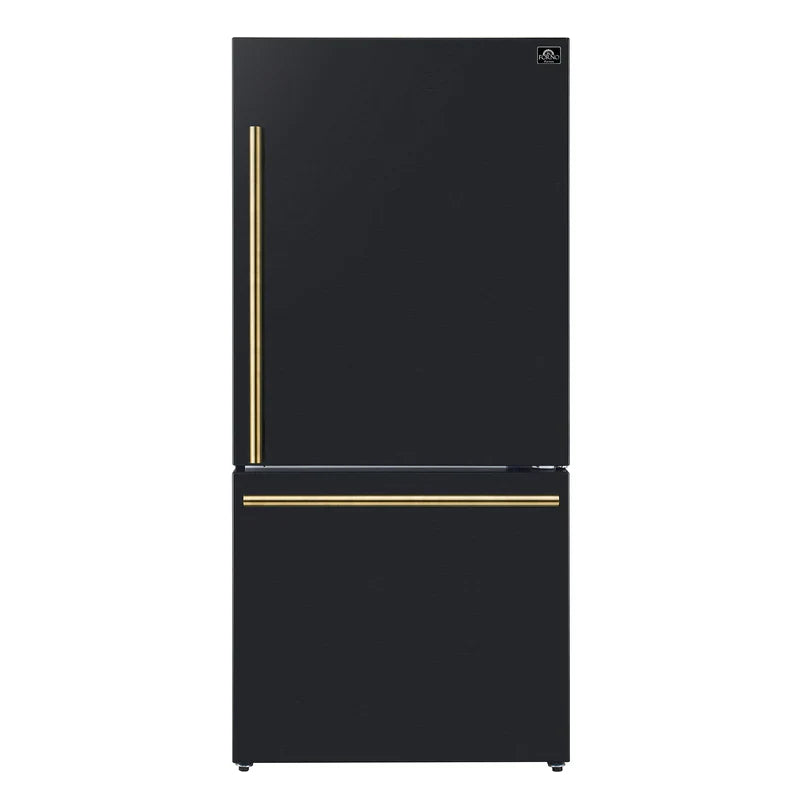

Color/Finish
| Stainless Steel VCM / Black / White
|
Installation Type
| Freestanding
|
Panel Ready
| No
|
Overall Capacity Cu. Ft.
| 17.2
|
Door Orientation
| Right Swing
|
Reversible Door
| No
|
Ice Maker
| No
|
Water Dispenser
| No |
External Dispenser
| No
|
Interior Light
| Yes |
Interior Light Type
| LED |
Defrost Type
| Automatic |

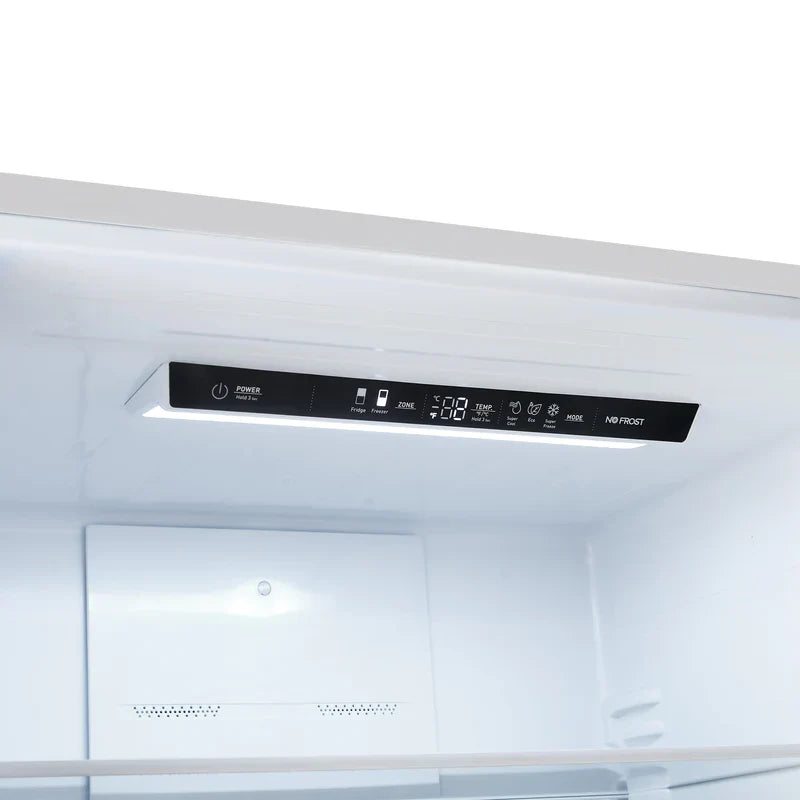

Control Type
| Touch Control
|
Control Location
| Internal
|
Temperature Range Refrigerator (°F)
| 34°F to 44°F
|
Temperature Range Freezer (°F)
| -11°F to 7°F
|
Temperature Range Refrigerator (°C)
| 1°C to 7°C
|
Temperature Range Freezer (°C)
| -24°C to-14°C
|
Adjustable Shelves
| 3 |
Spill-Proof Shelves
| No |
Auto Door Closer
| No |
Counter Depth
| Yes |
Leveling Legs
| Yes |
Primary Material
| Metal |
Cooling System
| Multi Air Flow
|
Compressor Type
| Constant Frequency Compressor
|
Door Ajarm Alarm
| Yes |
Garage Ready
| No |
Finger Print Resistant
| Yes |
Smudge Resistant
| No |
Filtration System
| No |
Safety Lock
| No |
Display Screen
| Yes |
Sabbath Mode
| No |
Vacation Mode
| No |
Energy Saver Mode
| Yes |
Fast Freeze/Cool Mode
| Yes |
Quiet Operation
| Yes |
Noise Level (dBA)
| 43
|
Power Cord
| 3-Prong NEMA 5-15
|
Supplier Intended and Approved Use
| Residential |

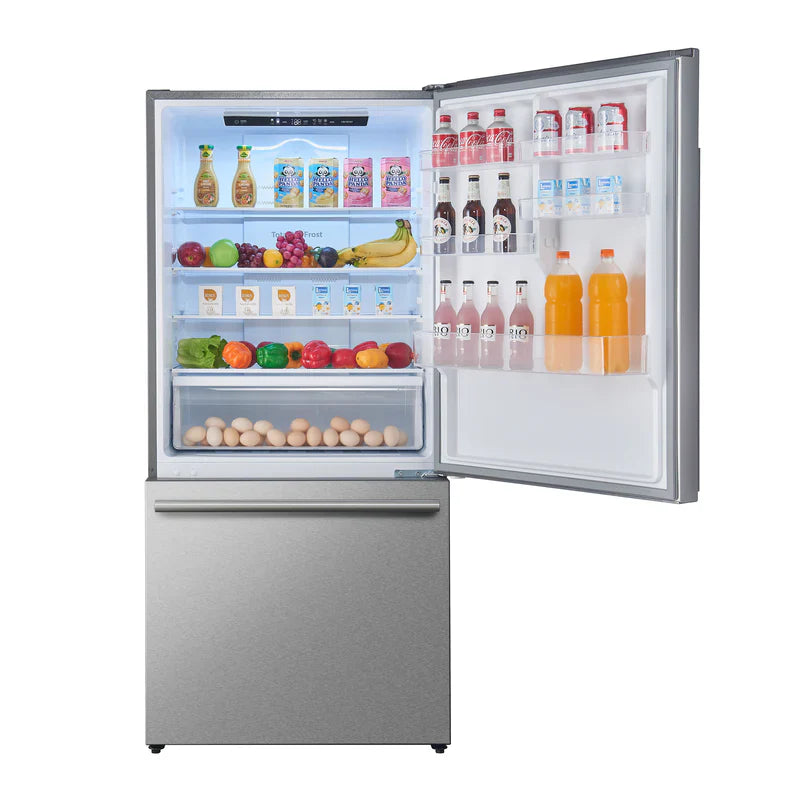

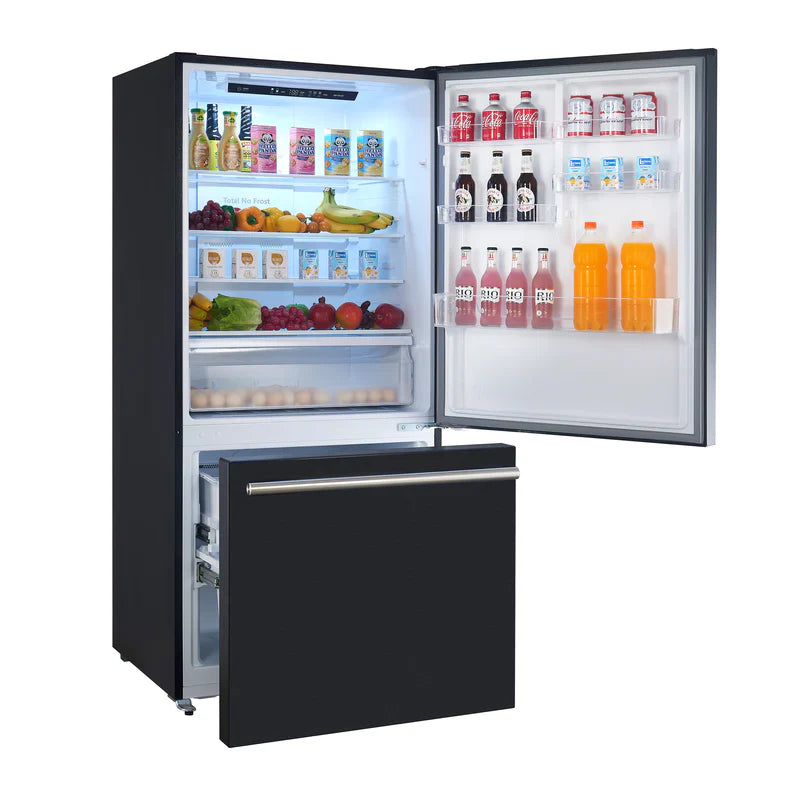

Fresh Food Capacity Cu. Ft.
| 12.09
|
Interior Fresh Food Dimensions W x D x H
| W:26.81” x D:21.08” x H:35.91”
|

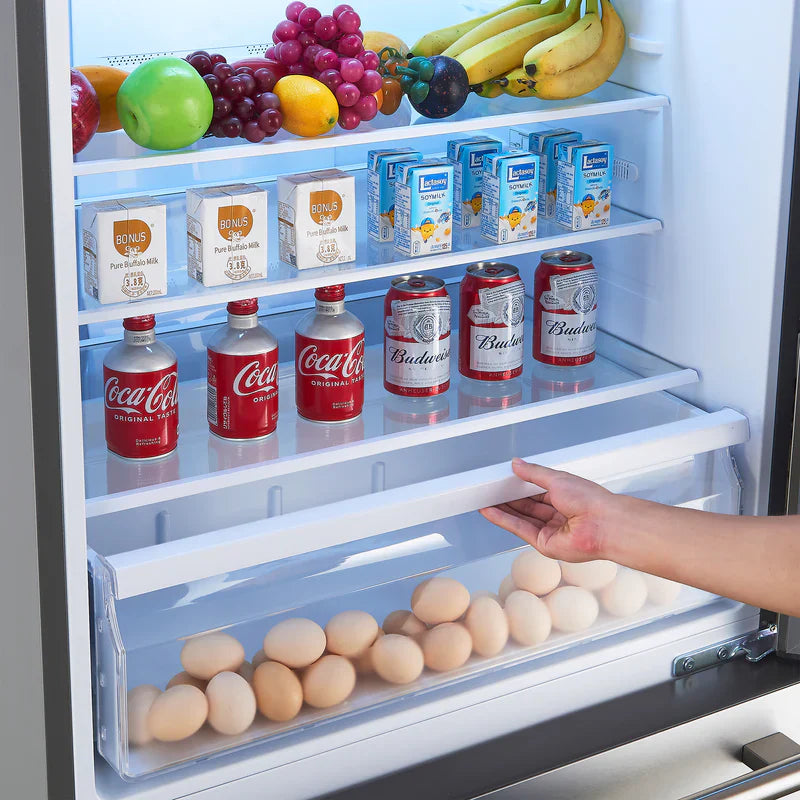

Fresh Food drawers
| 1 |
Fresh Food Drawer(s) Size W x D x H (inches)
| 26.6 x 15.7 x 7.8
|
Fresh Food Door Type
| Right Swing
|
Fresh Food Shelves
| 4 |
Fresh Food Shelve(s) Size W x D x H (inches)
| 26.7 x 14.3 x 0.37
|

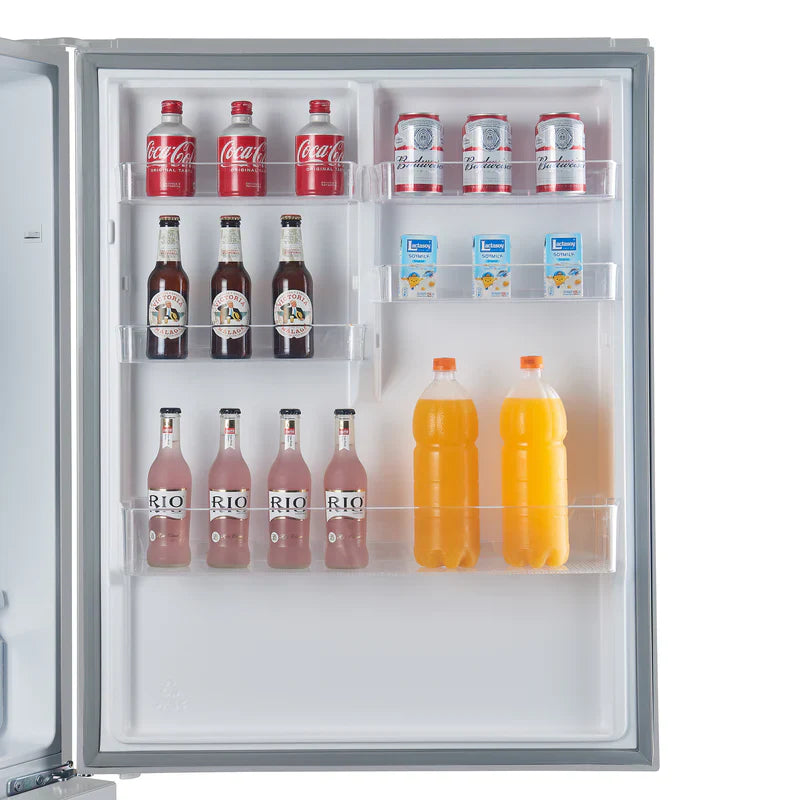

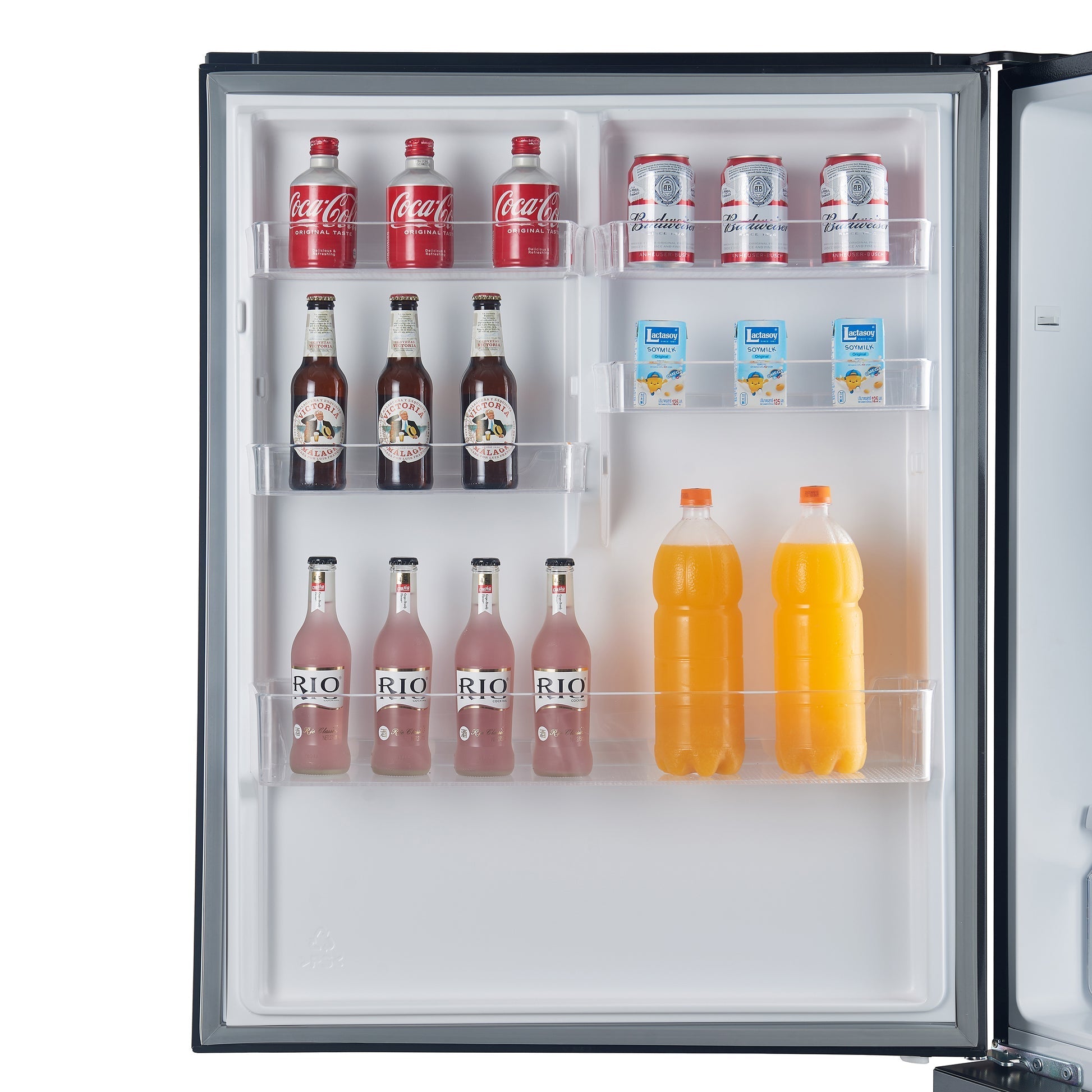

Gallon Door Bins
| 1 |
Gallon (4 Liters) Door Bin(s) Size W x D x H (inches)
| 26.8 x 5.6 x 3.5
|
Half (2 Liters) Gallon Door Bins
| 4
|
Half (2 Liters) Gallon Door Bins Size W x D x H (inches)
| 13.3 x 5.59 x 1.97
|
Standard Door Bins
| No |
Door Bins Color
| Transparent
|
Freezer Capacity
| 5.14 |
Interior Freezer Dimensions
| 24.45” x D:16.00” x H:22.68”
|

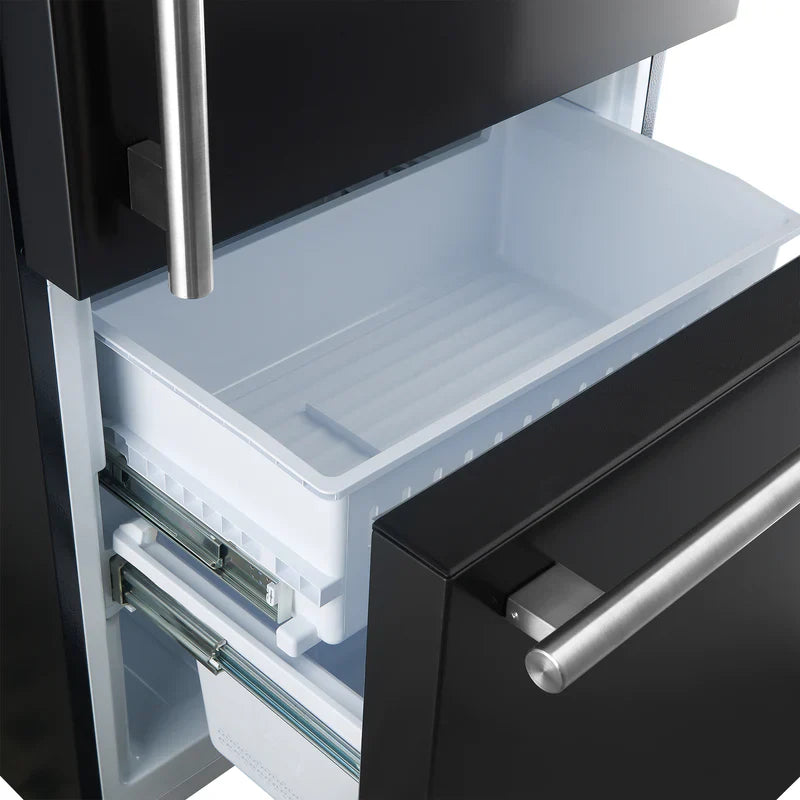

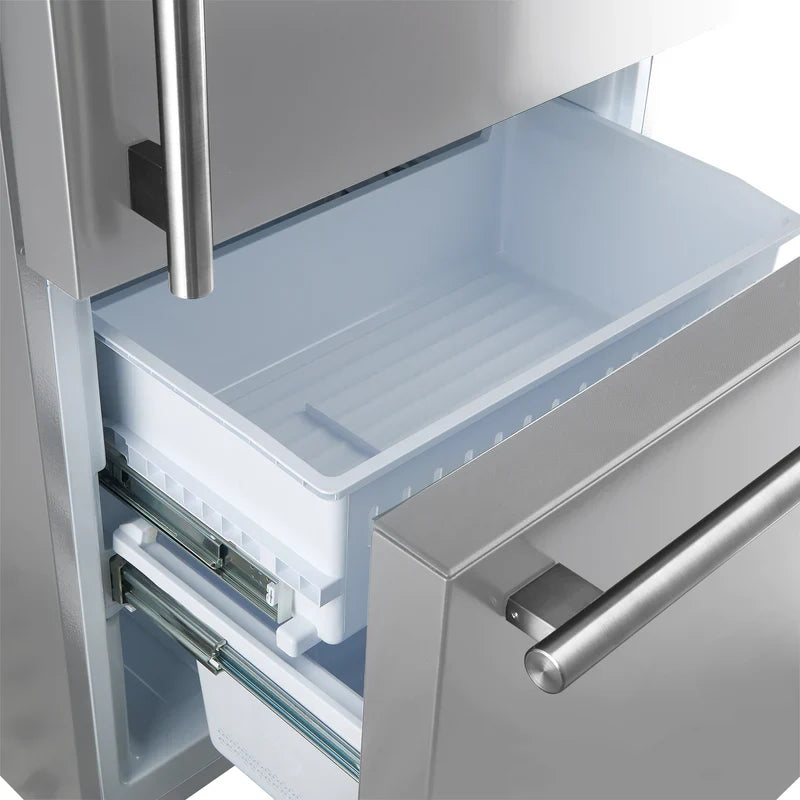

Freezer drawers
| 2 |
Freezer Drawer(s) Size W x D x H (inches)
| 25.7 x 14.78 x 11.38
|
Freezer Door Style
| Pull Out Drawer
|
Freezer Shelves
| No |
Amperage (AMP)
| 15 |
Running Amperage (AMP)
| 1.25 |
Volts (V)
| 120 |
Frequency (Hz)
| 60 |
Power Consumption Cooling Wattage (W)
| 80 |
Power Consumption Defrost Wattage (W)
| 220 |
Energy Consumption (kWh/yr)
| 453 |
Estimated Annual Operating Cost (USD)
| 63 USD
|
Power Cord Length without Plug
| 5.58 Feet
|
Power Cord Length with Plug
| 5.8 Feet
|
Receptacle Type
| 3-Prong Grounded NEMA 5-15
|
