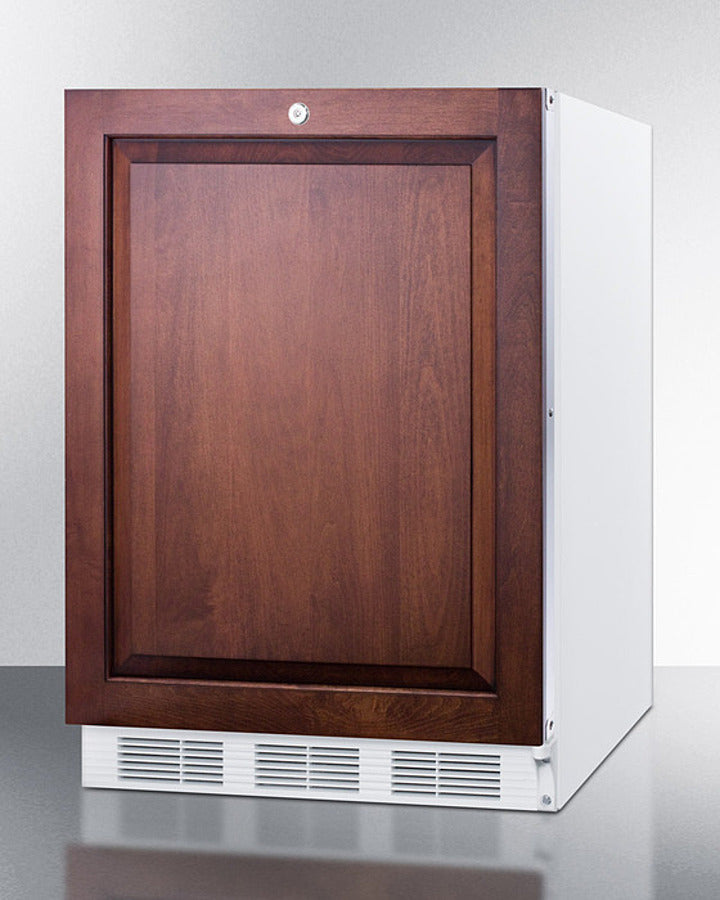

Accucold 24" Wide Built-In Refrigerator-Freezer ADA Compliant - CT66LWBIIFADA
Accucold by Summit Appliance offers a wide range of under-counter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.
At 32" high, the CT66LWBIIFADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a white cabinet. The factory reversible door includes a lock and an integrated stainless steel frame designed to accept full overlay panels for a custom look. Users provide their own handle.
Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.
The CT66LWBIIFADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBIADA Series.
Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup.
Features
- ADA compliant: 32" high to fit under lower ADA compliant counters
- Slim under-counter dimensions: Less than 24" wide with a generous storage capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Keyed security on the refrigerator door
- Integrated door frame: Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Door storage: Store tall bottles and condiments right on the door for convenient access
- Clear crisper drawer: Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Interior light: Automatically illuminates when you open the door
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Adjustable shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.38" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.5" (60 cm)
- Depth with door at 90°: 45.13" (115 cm)
- Capacity: 5.1 cu.ft. (144 L)
- Defrost Type: Cycle
- Door: Panel-Ready
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 1.4
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 100.0 lbs. (45 kg)
- Shipping Weight: 105.0 lbs. (48 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
Refrigerator-Freezer
- Door Swing: RHD
- Reversible: Factory Reversible
- Adjustable Shelves: Yes
- Crisper Qty: 1
- Crisper Finish: Transparent
- Crisper Cover: Glass
- Interior Light: Yes
- Refrigerator - Interior Height: 19.5" (50 cm)
- Refrigerator - Interior Width: 20.5" (52 cm)
- Refrigerator - Interior Depth: 17.0" (43 cm)
- Refrigerator - Shelf Type: Wire
- Refrigerator - Shelf Qty: 2
- Refrigerator - Full Door Shelves: 3
- Freezer - Interior Height: 5.0" (13 cm)
- Freezer - Interior Width: 19.0" (48 cm)
- Freezer - Interior Depth: 11.5" (29 cm)
- Thermostat Type: Dial
- Fan Type: Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.92 oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Level Legs: 4
- Compressor Step Height: 7.0" (18 cm)
- Compressor Step Width: 20.5" (52 cm)
- Compressor Step Depth: 5.0" (13 cm)
Available Upgrades
Exterior
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
- Extra key for IF door
- TT: Installed thermometer
- Extra key
- PH: Probe Hole
- Alarm
- ODA: Open door alarm
- LHD: Left hand door swing
- SSK
- HG: Hospital grade cord
Interior
- FCGP: Internal fan with gel packs
- FC: Internal Fan
