| Weight and Dimensions | |
| Overall Dimensions (IN) | 24 |
Depth without Handle (IN)
| 27.78 |
Depth Door(s) Open 90° (inches)
| 44.37 |
Height Top of the Door (inches)
| 70.1 |
Height Top of Door Hinge (inches)
| 70.1 |
Height Top of the Cabinet/Case (inches)
| 67.95 |
Sides Clearance - On Each Sides (IN)
| 0.5 |
Minimum Back Clearance (IN)
| 3 |
Minimum Top Clearance (IN)
| 1 |
| Cutout Dimensions (IN) | 37"W X 31"D X 71"H |
Overall Weight (LBS)
| 242.5 |
| Electrical | |
Circuit Breaker Amperage (A)
| 15 |
Running Amperage (A)
| 2.1 |
Volts (V)
| 115 |
Frequency (Hz)
| 60 |
Power Consumption Cooling Wattage (W)
| 90 |
Power Consumption Defrost Wattage (W)
| 240 |
Energy Consumption (kWh/yr)
| 539 |
Estimated Annual Operating Cost (USD)
| USD 76.00 |
Power Cord Length with Plug (feet)
| 8 |
Number of Power Cord
| 1 |
Receptacle Type
| 3-Prong
(NEMA 5-15P) |
| Details | |

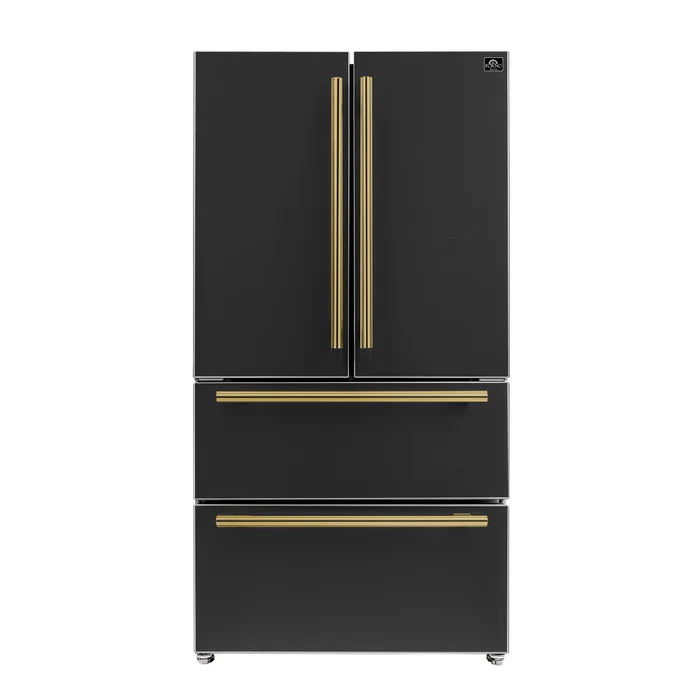

Product Type
| French Door |
Color/Finish
| Black |
Handle Finish
| Antique Brass |
| Freestanding | Freestanding |
Panel Ready
| No |
Overall Capacity Cu. Ft.
| 19.2 |
Flat back design
| Yes |
Hidden Hinges
| No |

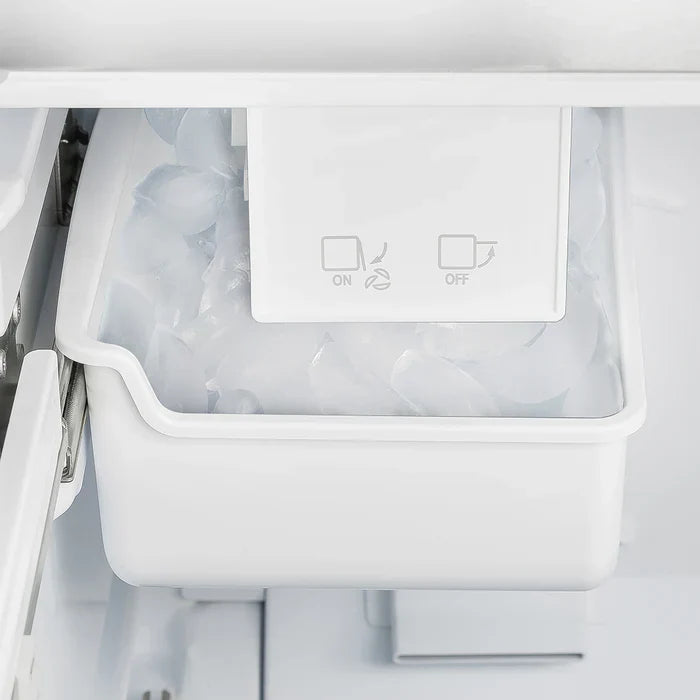

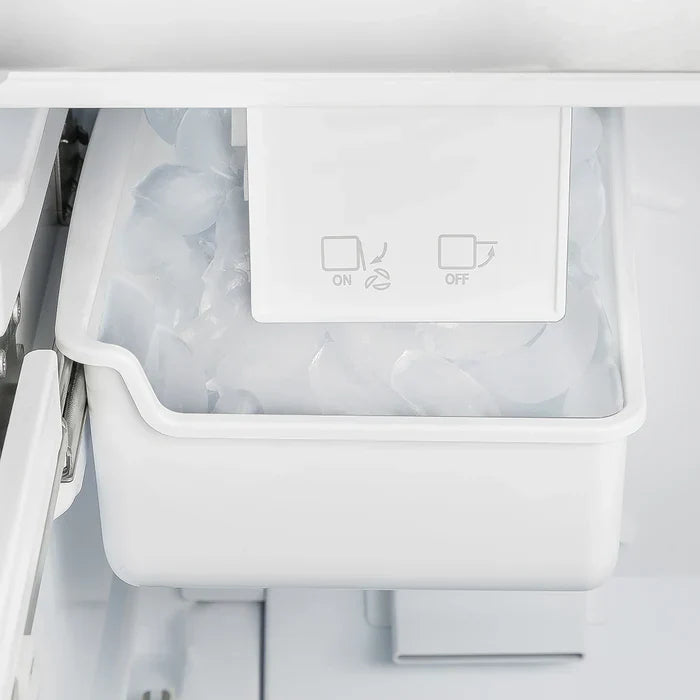

Ice Maker
| Yes |
Ice Type
| Cubed |
Ice Maker Type
| Single |
Automatic Ice Level Control
| Yes |
Removable Ice Bucket
| Yes |
Daily Ice Production (lbs)
| 4 |
Filtered Ice
| No |
Dispenser Type
| No Water/Ice Dispenser |
Water Dispenser
| No |
External Dispenser
| No |
Interior Light
| Yes |
Interior Light Type
| LED |
Defrost Type
| Automatic |
Temperature Memory Function
| Yes |
Electronic Temperature Control
| Yes |
Control Location
| On Door |
Spill-Proof Shelves
| No |
Pantry Drawer
| No |
Auto Door Closer
| No |
Counter Depth
| Yes |
Leveling Legs
| Yes |
Primary Material
| Steel |
Door Style
| Contoured |
Door Texture
| Smooth |
Door Liner Material
| High Impact Polystyrene |
Door Liner Color
| White |
Cabinet Material
| Embossed Galvanized Steel |
Cabinet Color
| Black |
Door Ajarm Alarm
| Yes |
Garage Ready
| No |
Finger Print Resistant
| No |
Smudge Resistant
| Yes |
Air Filtration
| No |
Safety Lock
| No |
Display Screen
| LED |
Sabbath Mode
| Yes |
Vacation Mode
| Yes |
Energy Saver/ECO Mode
| No |
Fast Freeze/Cool Mode
| Yes |
See-Thru Door
| No |
Quiet Operation
| Yes |
Noise Level (dBA)
| 40.76 |
Extra Water Filter
| No |
Water Pipe Included
| Yes |
Water Pipe Length (Feet)
| 8.69 |
Installation Kit
| Yes |
Power Cord
| Yes |
Toe Grille Color
| No Toe Grille |
Cooling Type
| Multi air cooling |
Dual Evaporator Cooling System
| No |
Cooling System
| Compressor Based |
Compressor Type
| Inverter Compressor |
Contain Gases
| R600A |
Quantity of gas in Compressor (oz)
| 3 |
Supplier Intended and Approved Use
| Residential Use Only |

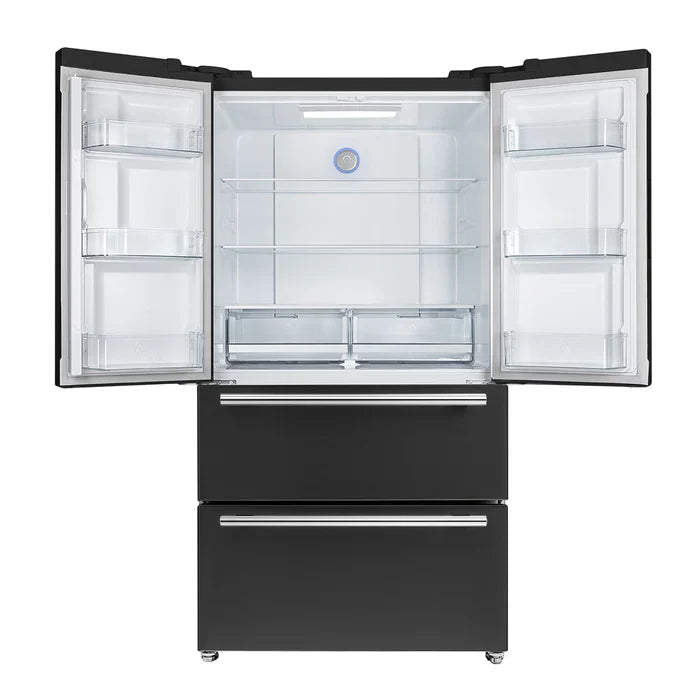

Fresh Food Capacity Cu. Ft.
| 12.1 |
Interior Fresh Food Dimensions W x D x H (inches)
| 31.5''W x 21''D x 32''H |
| Interior Fresh Food Dimensions | 31.5 |
Interior Fresh Food Dimensions Depth (in)
| 21 |
Interior Fresh Food Dimensions Height (in)
| 32 |

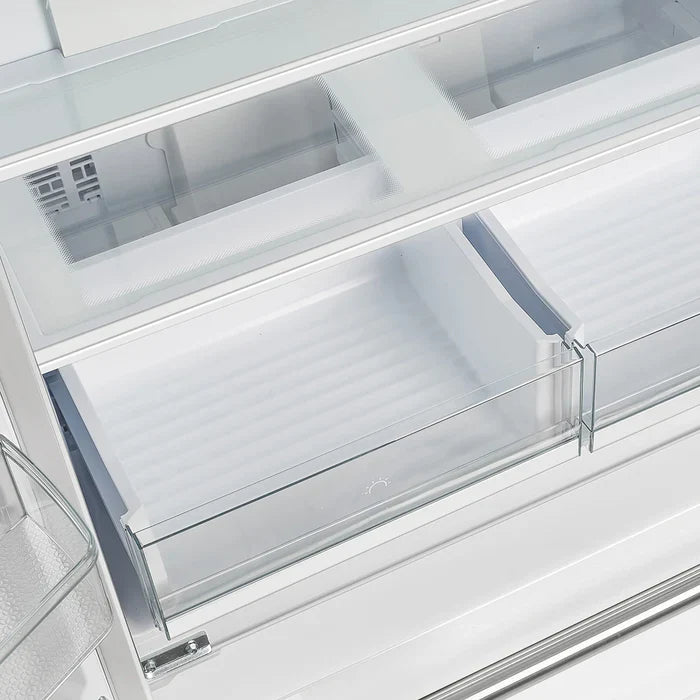

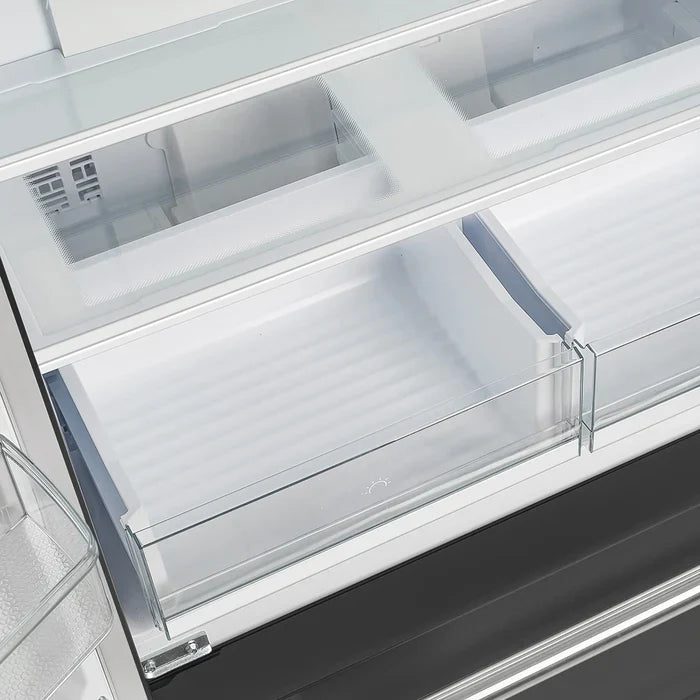

Number of Fresh Food drawers
| 2 |
Temperature Controlled Drawer(s)
| No |
Humidity Controlled Drawer(s)
| No |
| Fresh Food Drawer(s) Size | 13"W x 6.5"D x 12"H |

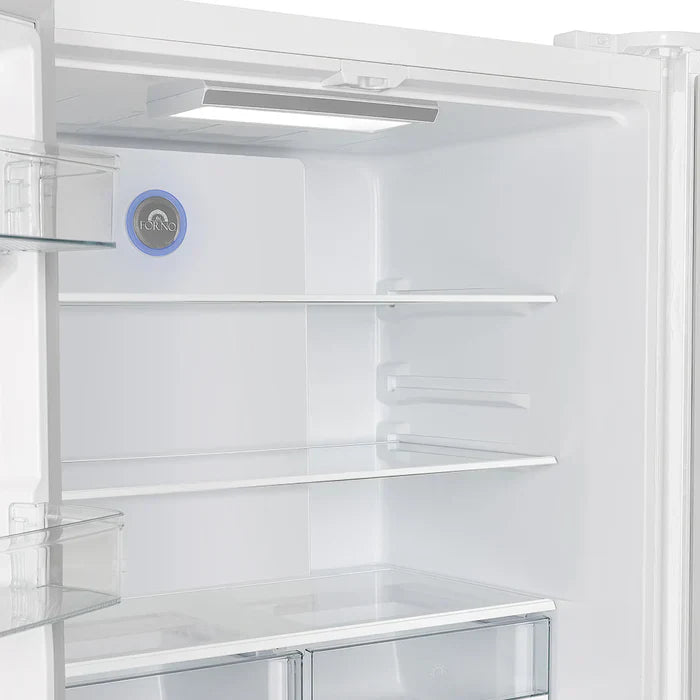

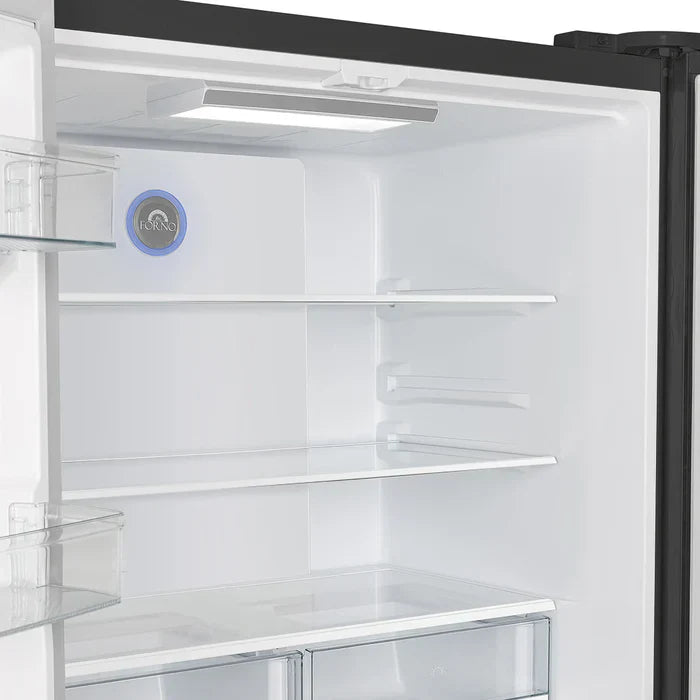

Number of Fresh Food Shelves
| 3 |
Fresh Food Shelves Material
| Glass |
Adjustable Fresh Food Shelves
| Yes |
Number of Adjustable Shelves
| 2 |
| Fresh Food Shelve(s) Size | 31.5"W x 14"D x 0.375"H |
Fresh Food Door Type
| French Door |

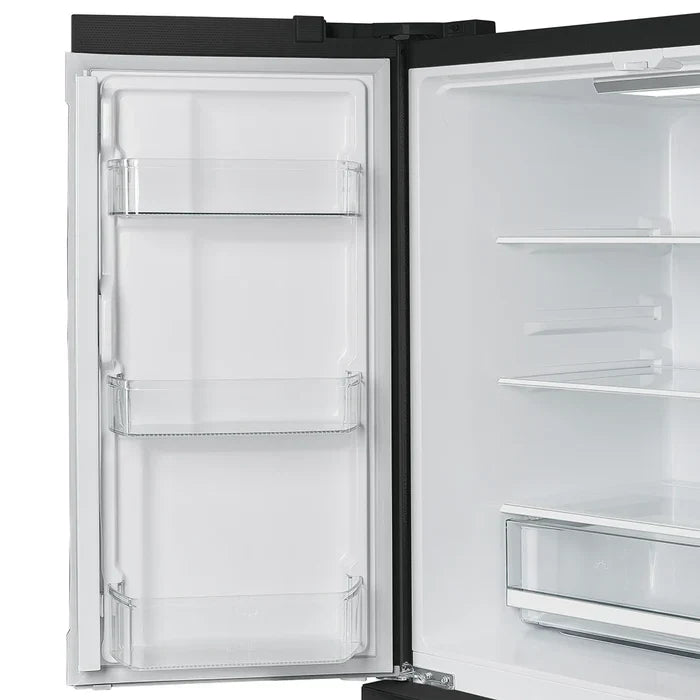

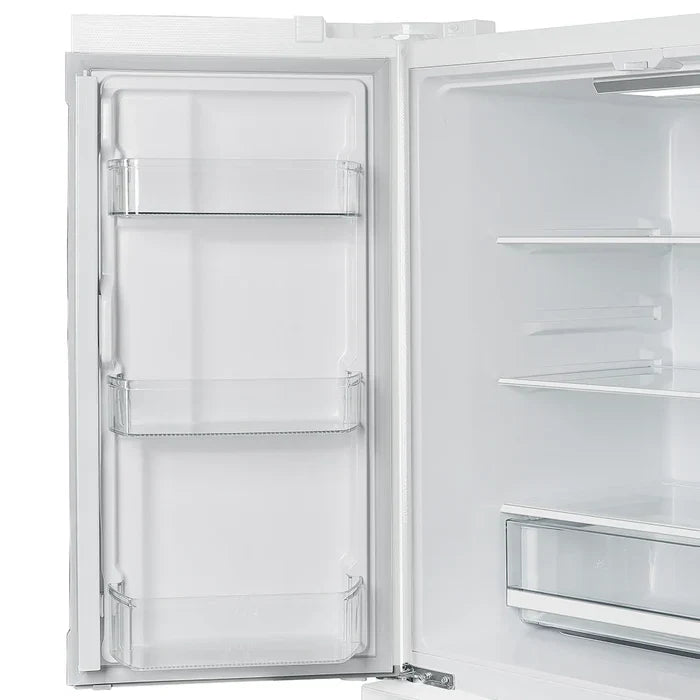

Door Storage
| Yes |

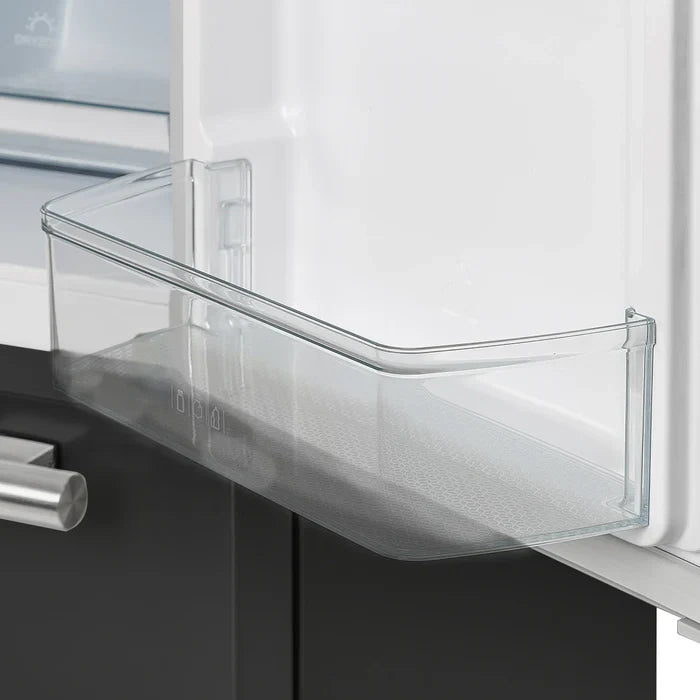

Fridge Door Bin(s)/Shelves
| 6 |
Adjustable Door Storage
| No |
Number of Gallon (4 Liters) Door Bins
| 2 |
| Gallon (4 Liters) Door Bin(s) Size | 13.5 x 6.25 x 3.75 |

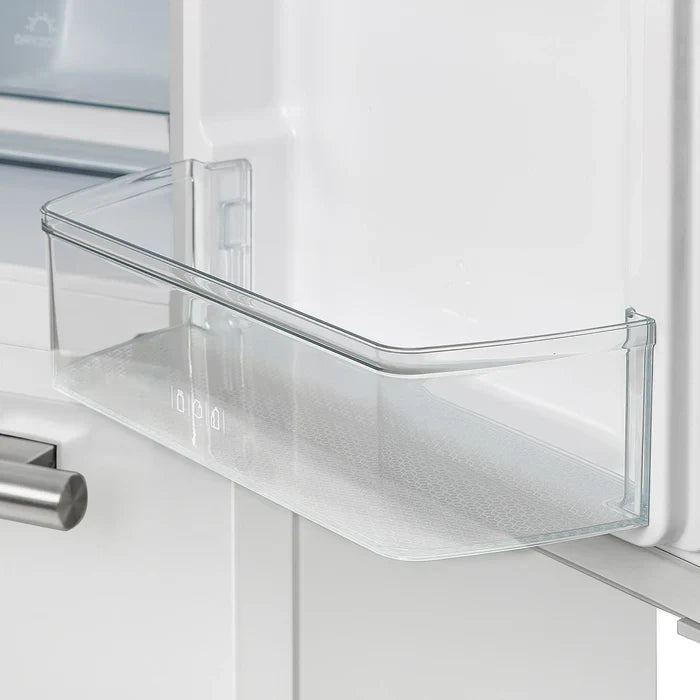

Number of Standard Door Bins
| 4 |
| Standard Door Bins Size | 13.5 X 6.25 x 3 |
Door Bins Color
| Transparent |
Door Bins Material
| Plastic |
Temperature Range Refrigerator (°F)
| 32°F to 43°F |
Temperature Range Refrigerator (°C)
| 0°C to 6°C |
Freezer Capacity
| 7.1 Cu.Ft. |
Freezer Door Style
| Pull-Out Drawer |
Freezer Light
| Yes |
Interior Freezer Dimensions W x D x H (in)
| 30"W x 15.5”D x 27.5”H |
Interior Freezer Dimensions Width (in)
| 30 |
Interior Freezer Dimensions Depth (in)
| 15.5 |
Interior Freezer Dimensions Height (in)
| 27.5 |

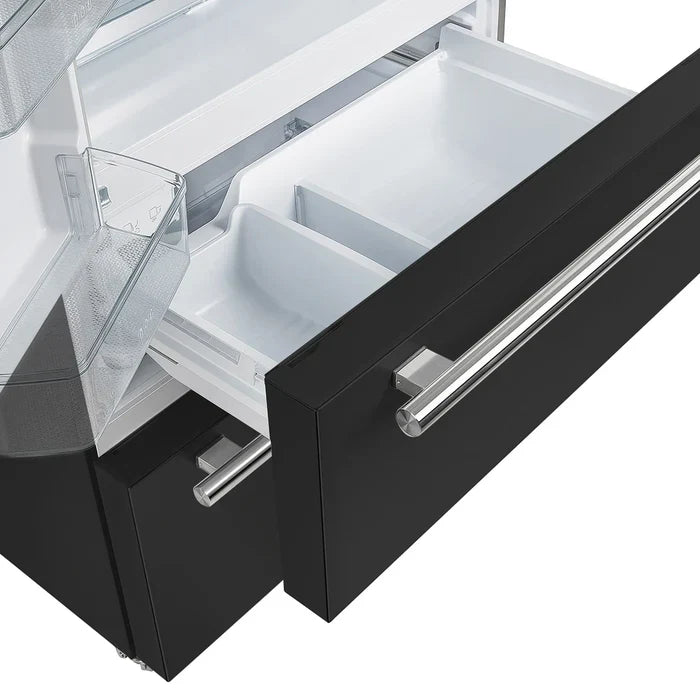

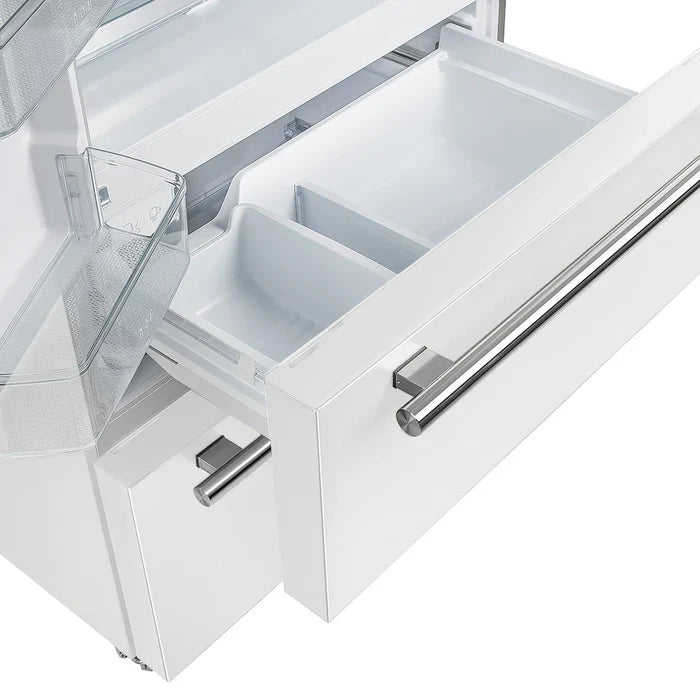

Number of Freezer Drawers
| 0 |
Number of Freezer Basket
| 2 |
| Upper Freezer Drawer(s)/Basket Size | 26"W x 14"D x 8"H |
| Lower Freezer Drawer(s)/Basket Size | 26"W x 13"D x 10"H |
Ice Bin Size W X D X H (inches)
| 12"W x 7.5"D x 4"H |
Extra Freezer Tray
| Yes |
Freezer tray Dimensions W x D x H (inch)
| 27"W x 13"D x 3"H |
Freezer Section Layout
| Freezer Drawers; Removable Ice bin; Full Width |
Temperature Range Freezer (°F)
| -10°F to 5°F |
Temperature Range Freezer (°C)
| -23°C to 15°C |
| Certifications | |
Safety Listing
| cCSAus |
File/Control Number
| 300778 |
Energy Star Certified
| Yes |
ENERGY STAR Unique ID
| 2361180 |
Energy Star Most Efficient
| No |
ISTA 6A Certified
| Yes |
ISTA 6A Report Number
| SHAH01547521 |
California “lead-free” certification requirements (NSF/ANSI 61)
| Yes |
Certified to NSF/ANSI/CAN 372 Drinking Water System Components ‑ Lead Content
| Yes |
NSF/ANSI 61 & NSF/ANSI/CAN 372 File Number
| 274353 |
Title 20 - California Regulation
| Yes |
CEE Tier Qualified
| Not Rated |
ADA Compliant
| No |
TAA Compliant
| No |
UPLR Compliant
| No |
Energy Policy Act 1992 Compliant
| Yes |
CPSC 16 CFR 1750 Compliant
| Yes |
| Warranty |
|
Commercial Warranty
| No |
Warranty Type
| Limited |
Warranty Length
| 2 |
Warranty on Parts
| 2 |
Warranty on Labor
| 2 |
