Accucold 24" Wide Built-In All-Freezer, ADA Compliant - VT65MLBIVACADA
The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

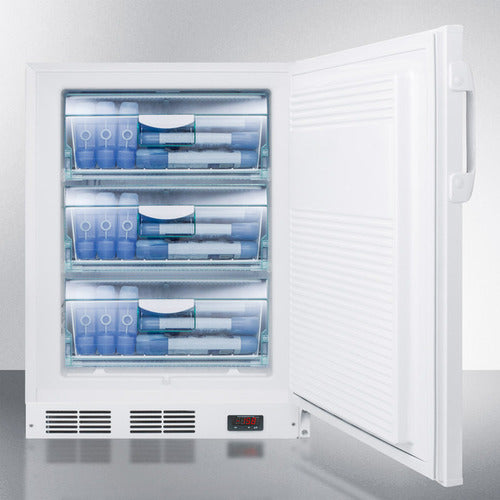

Made in Europe, the VT65MLBIVACADA is a 32" high front-breathing all-freezer designed for built-in installation under lower ADA compliant counters. The 3.2 cu.ft. interior offers static cooling for stable results. Four slide-out storage baskets with clear plastic fronts ensure that stored items are not exposed unnecessarily to room temperature. This unit has a flat door liner as recommended by the CDC.
For optimum temperature assurance, the VT65MLBIVACADA includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. An access port with contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.
The VT65MLBIVACADA can be paired with the FF7LBIVACADA all-refrigerator for a matching set. All models can be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
Features
- ADA compliant: 32" height to fit under lower ADA compliant counters
- Slim undercounter dimensions: 24" footprint is ideal for use under the counter
- Built-in capable: Front-breathing design allows built-in installation under counters
- -25º C/-13º F capable: Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Digital thermostat: Electronic controls for more precise temperature management
- High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
- NIST calibrated temperature display: Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree
- Self-closing door: Door closes automatically when opened at angles less than 90º
- Access port with contact: Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order
- Hospital grade cord: Secure three-pronged cord for added unit safety
- Factory installed lock: Keep contents secure with a front lock on the door
- Three slide-out drawers: Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
- Manual defrost: Static cooling system for reduced temperature fluctuations
- Fully finished white cabinet: Allows the unit to be used freestanding
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Factory reversible door: Standard unit ships RHD but can be ordered LHD
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.25" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.5" (60 cm)
- Depth with Handle: 24.25" (62 cm)
- Depth with door at 90°: 45.13" (115 cm)
- Capacity: 3.2 cu.ft. (91 L)
- Defrost Type: Manual
- Door: White
- Cabinet: White
- US Electrical Safety: UL
- Canadian Electrical Safety: ULC
- Amps: 1.3
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 105.0 lbs. (48 kg)
- Shipping Weight: 110.0 lbs. (50 kg)
- Parts & Labor Warranty: 2 Years
- Compressor Warranty: 5 Years
- UPC: 761101043517
Freezer
- Door Swing: RHD
- Reversible Factory: Reversible
- Interior Height: 24.25" (62 cm)
- Interior Width: 17.75" (45 cm)
- Interior Depth: 16.5" (42 cm)
- Thermostat Type: Digital
- Fan Type: Exterior
- Refrigerant Type: R134a
- Refrigerant Amount: 2.7 oz.
- High Side PSI: 235.0
- Low Side PSI: 70.0
- Interior Drawers: Yes
- Drawers Qty: 3
- Compressor Step Height: 6.5" (17 cm)
- Compressor Step Width: 17.5" (44 cm)
- Compressor Step Depth: 5.5" (14 cm)
- Temperature Range: -12ºC to -25ºC
Available Upgrades
Exterior
- SSK - Stainless steel kickplate
- Latch - Factory-installed door latch requires manual release to open unit
- LHD - Left hand door swing
- ODA - Open door alarm
- Extra key
- DL2B - Factory installed NIST calibrated digital data logger (DDL)
Lock
- AC Keypad - AC powered keypad lock
- KEYPAD - Battery-powered keypad door lock
Handle
- TBC Copper Towel Bar Handle CP Full-Le
Door
- STO-Step-To-Open Door Pedal
