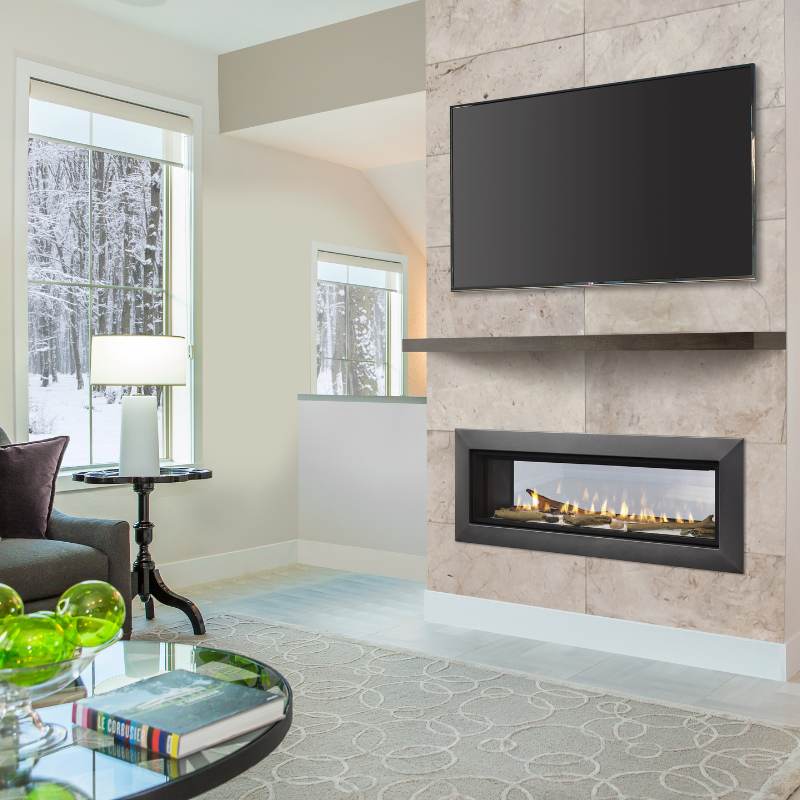

The Echelon II See Through Linear Direct Vent Gas Fireplace from Majestic
Create a stylish, relaxing space with the Majestic Echelon II fireplace, featuring dynamic flames and customizable interior options. Available in both see-through and single-sided designs, this contemporary fireplace provides an eye-catching focal point with its illuminated glass and striking flame effects.
Key Features:
- Direct Vent Technology: Efficiently removes combustion fumes from your home.
- IntelliFire Ignition System: Simplifies operation with smart, safe ignition.
- Battery Backup: Ensures reliable warmth even during power outages.

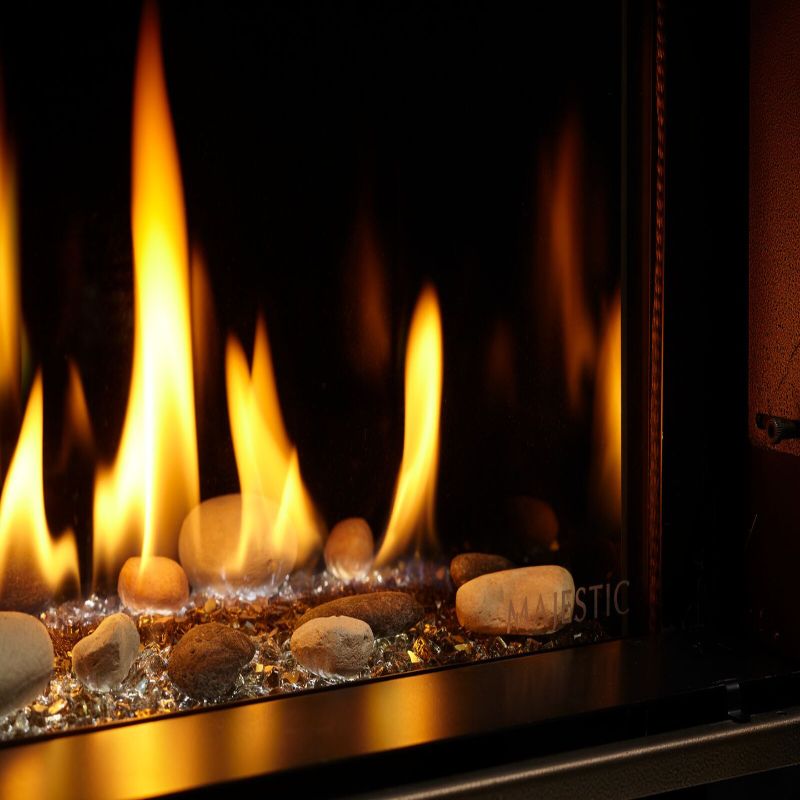

- LED Ember Bed Glow: Adds ambient lighting, even without flames.
- Limited Lifetime Warranty: Covers key components like the firebox and heat exchanger.
Choose the Echelon II for the perfect blend of style and function.
Customize Your Echelon II Fireplace
Pick the options that suit your style
Choose Your Front (Required)
Interior Options
Control Your Comfort
- Touchscreen Remote (RC400): comes standard and features: on/off, flame height adjustment, fan speed, lights adjustment, thermostat mode, room temperature readout, child lock, timer mode, battery backup, cold climate mode, wall docking station
- IntelliFire App (IFT-WFM): The WiFI module must be purchased separately. The IntelliFire App includes all the features of the touchscreen remote control on your smart device. You can monitor your fire from anywhere or even control it with the sound of your voice (IntelliFire is compatible with voice assistants like Amazon Alexa and Google Assistant).
- Wireless Wall Switch: must be purchased separately. Features include an on/off switch, a battery strength indicator, and a cold climate mode.
Echelon II 48" See Through Specifications (ECHEL48ST)
| Model | Echelon II 36ST Rev C See-Through Gas Fireplace - DV |
| Unit Width | 46-3/16" |
| Unit Height | 41-3/4" |
| Unit Depth | 17-1/8" |
| Framing Height | 42" |
| Framing Depth | 17" |
| Framing Front Width | 48-1/4" |
| Framing Back Width | 48-1/4" |
| Fuel Type | Natural Gas or Propane by conversion |
| BTU/hr Input | 30,000 (NG); 27,000 (LP) |
| Heating Capacity | Up to 900 sq ft |
| Viewing Area | 35-1/2 x 12-1/2" |
Echelon II 48" See Through Resources (ECHEL48ST)
BROCHURE:
INSTALLATION MANUALS:
SERVICE PARTS:
