Accucold 24" Wide Built-In Refrigerator-Freezer ADA Compliant - CT66LWBIADA
Accucold by Summit Appliance offers a wide range of under-counter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.

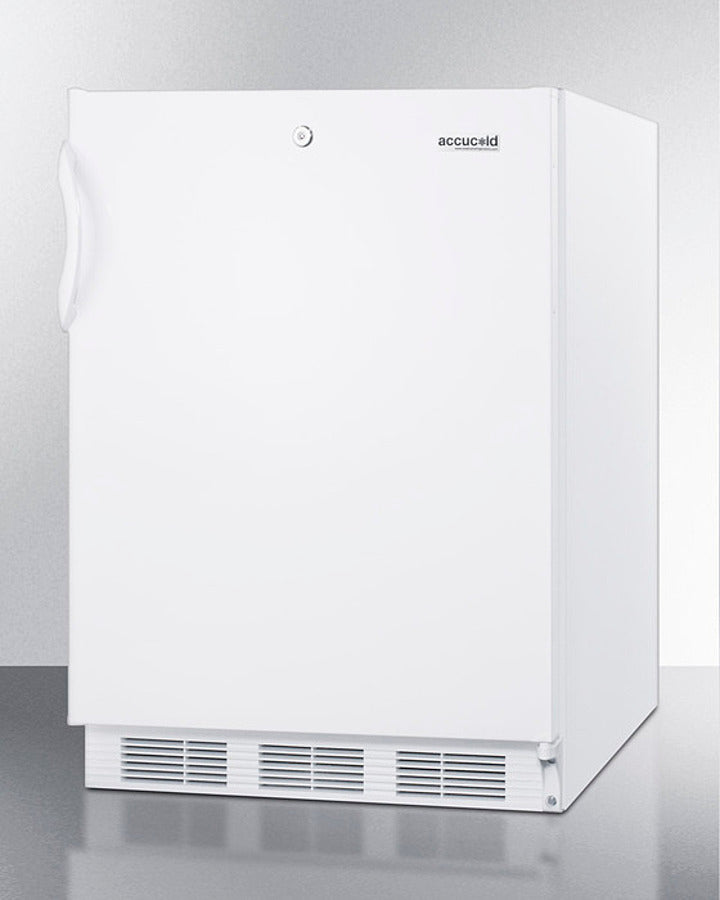

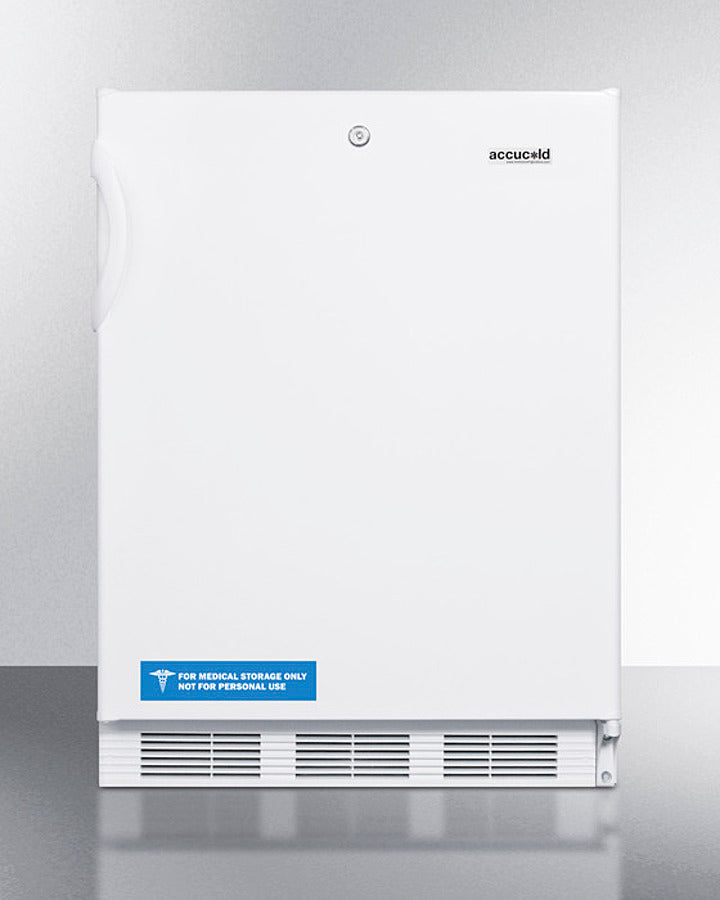

At 32" high, the CT66LWBIADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a white exterior finish and a user-reversible door swing. A factory installed lock offers convenient security.
Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.
The CT66LWBIADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBIADA Series.
Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup.
Features
- ADA Compliant: 32 inch height is designed to fit under ADA compliant counters
- Slim under-counter dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Keyed lock offers added security
- Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Adjustable shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Crisper drawer: Get the longest life and best taste out of produce by storing greens in lower slide drawer
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Interior light: Automatically illuminates when the door is opened
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Reversible door: User-reversible door swing for added flexibility
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.38" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.5" (60 cm)
- Depth with Handle: 24.63" (63 cm)
- Depth with door at 90°: 45.75" (116 cm)
- Capacity: 5.1 cu.ft. (144 L)
- Defrost Type: Cycle
- Door: White
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 1.4
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 100.0 lbs. (45 kg)
- Shipping Weight: 105.0 lbs. (48 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101068817
Refrigerator-Freezer
- Door Swing: RHD
- Reversible: Yes
- Adjustable Shelves: Yes
- Crisper Qty: 1
- Crisper Finish: Transparent
- Crisper Cover: Glass
- Interior Light: Yes
- Refrigerator - Interior Height: 19.5" (50 cm)
- Refrigerator - Interior Width: 20.5" (52 cm)
- Refrigerator - Interior Depth: 17.0" (43 cm)
- Refrigerator - Shelf Type: Wire
- Refrigerator - Shelf Qty: 2
- Refrigerator - Full Door Shelves: 3
- Freezer - Interior Height: 5.0" (13 cm)
- Freezer - Interior Width: 19.0" (48 cm)
- Freezer - Interior Depth: 11.5" (29 cm)
- Thermostat Type: Dial
- Fan Type: Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.92 oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Compressor Step Height: 7.0" (18 cm)
- Compressor Step Width: 20.5" (52 cm)
- Compressor Step Depth: 5.0" (13 cm)
Available Upgrades
Exterior
- Alarm
- SSK
- SS Hinges
- Extra key
- Latch for door
- TT: Installed thermometer
- PH: Probe Hole
- SCD: Self-closing door
- ODA: Open door alarm
- LHD: Left hand door swing
- HG: Hospital grade cord
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
Lock
Interior
- FCGP: Internal fan with gel packs
- FC: Internal Fan
Handle
- TBC Copper Towel Bar Handle
- CP Full-Length Copper Pipe Handle
Door
- STO: Step-To-Open Door Pedal
